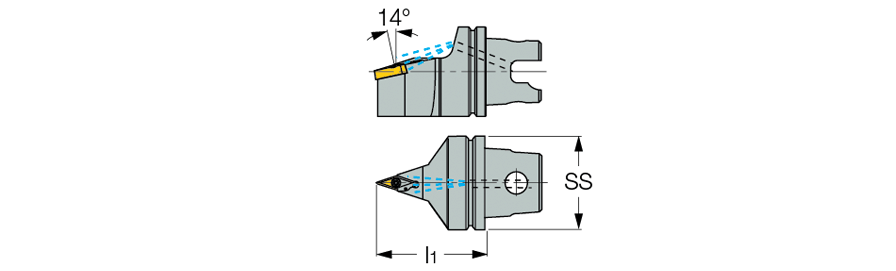

IM-SVVNN-F :  Screw lock, 72.5° lead angle, toolholders, for 35° negative rhombic inserts with ISO 26622-1(*) tapered shank. High rigidity in profiling applications, due to a special wedge design.


ISO 26622-1   COOLANT
  Designation
SS
l1
di
  IM40 SVVNN-12F  40  40.00  7.15
  IM50 SVVNN-12F  50  50.00  7.15

(*) Tools with orientation holes in the flange groove can be supplied on request
