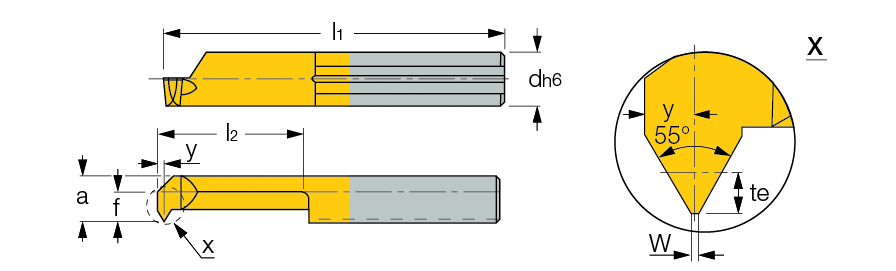

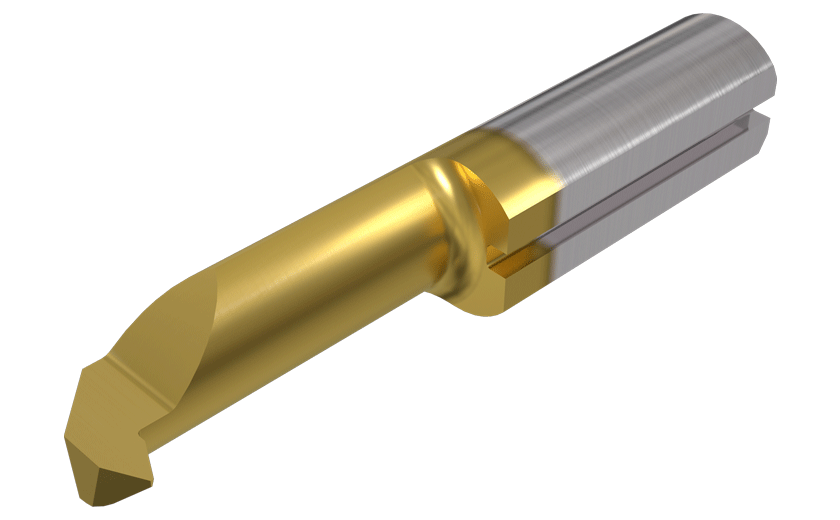

PICCO-WHITWORTH-THREAD :
Mini-carbide-bars for Whitworth profile internal threading. Dmin 4 mm.
Designation
d
TPI
max
TPI
min
te
w
Y
f
a
l3
l1
D
min
Grade
PICCO R 005.5548-15
5.00
48
24
0.40
0.06
0.45
1.9
4.40
14.0
30.00
4.80
IC228
PICCO R 006.5524-15
6.00
48
24
0.40
0.12
0.75
2.3
5.30
14.0
30.00
6.00
IC228
PICCO R 006.5548-15
6.00
24
16
0.81
0.06
0.45
2.3
5.30
14.0
30.00
6.00
IC228
PICCO R 007.5524-15
7.00
24
16
0.81
0.12
0.75
2.7
6.30
14.0
30.00
7.00
IC228
