SWDPR/L :

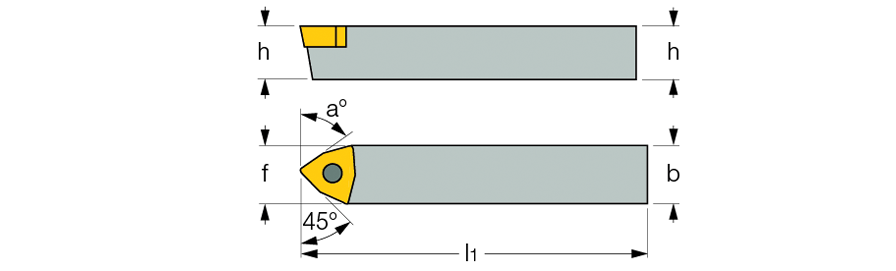

Screw lock 45° approach angle toolholders for trigon inserts, used on Swiss automatics.
Right-hand shown
Designation
h
b
l1
f
a°
R/L
SWDPL 0810-04
8.0
10.0
150.00
10.1
51
L
SWDPR 0810-04
8.0
10.0
150.00
10.1
51
R
SWDPL 1010-04
10.0
10.0
150.00
10.1
51
L
SWDPR 1010-04
10.0
10.0
150.00
10.1
51
R
SWDPL 1212-05
12.0
12.0
150.00
12.1
55
L
SWDPR 1212-05
12.0
12.0
150.00
12.1
55
R
SWDPR 1414-06
14.0
14.0
150.00
14.1
55
R
SWDPL 1616-06
16.0
16.0
150.00
16.1
55
L
SWDPR 1616-06
16.0
16.0
150.00
16.1
55
R
