SWEPR/L :

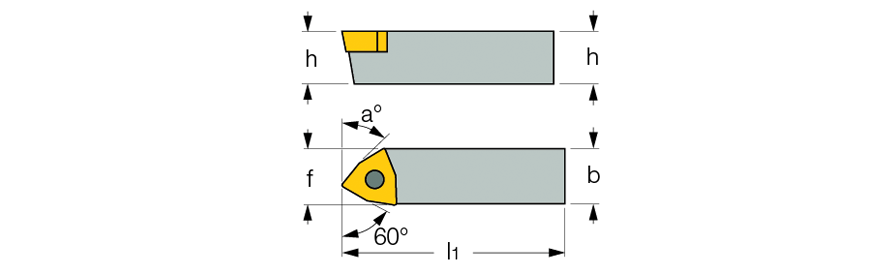

Screw lock, 60° approach angle holders for trigon inserts, used on Swiss automatics.
Designation
h
h1
b
l1
f
a°
R/L
SWEPL 0810-04
8.0
8.0
10.0
150.00
10.1
36
L
SWEPR 0810-04
8.0
8.0
10.0
150.00
10.1
36
R
SWEPL 1010-04
10.0
10.0
10.0
150.00
10.1
36
L
SWEPR 1010-04
10.0
10.0
10.0
150.00
10.1
36
R
SWEPL 1212-05
12.0
12.0
12.0
150.00
12.1
40
L
SWEPR 1212-05
12.0
12.0
12.0
150.00
12.1
40
R
SWEPR 1414-06
14.0
14.0
14.0
150.00
14.1
40
R
SWEPL 1616-06
16.0
16.0
16.0
150.00
16.1
40
L
SWEPR 1616-06
16.0
16.0
16.0
150.00
16.1
40
R
