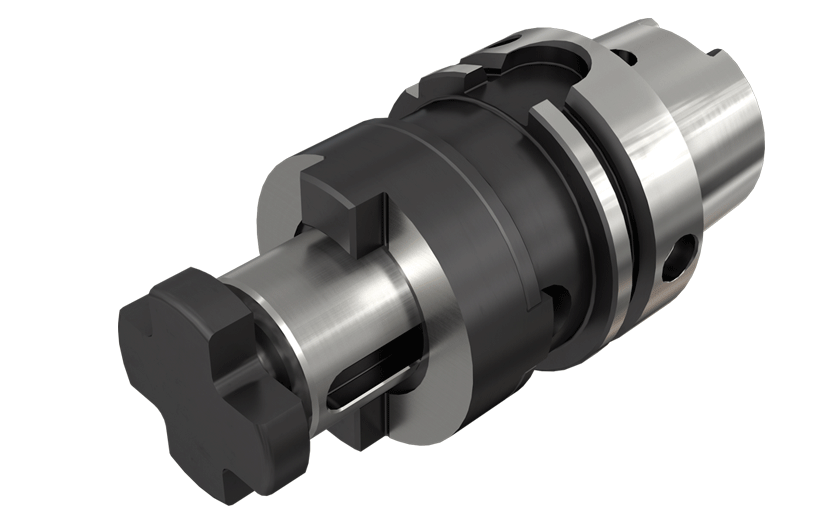

HSK A-SEMC :
DIN 6358 COMBI shell mill holders with DIN 69893/A HSK taper shank.

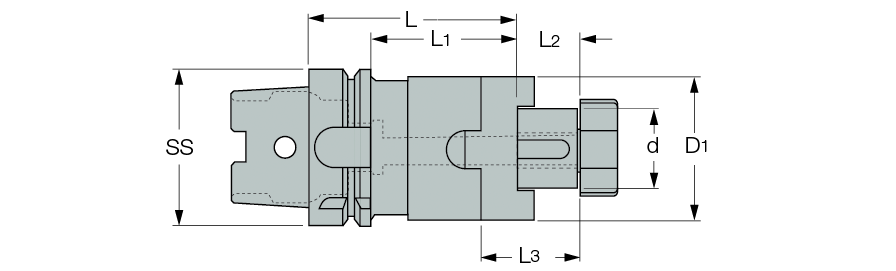

Designation
S.s
d
D1
L
L2
L1
L3
Kg
HSK A 50 SEMC 16X50
50
16.00
32.0
50.00
17.00
24.0
27.00
0.08
HSK A 50 SEMC 22X50
50
22.00
40.0
50.00
19.00
34.0
31.00
0.73
HSK A 50 SEMC 27X65
50
27.00
48.0
65.00
21.00
39.0
33.00
0.00
HSK A 50 SEMC 32X65
50
32.00
58.0
65.00
24.00
39.0
38.00
0.08
HSK A 63 SEMC 16X60
63
16.00
32.0
60.00
17.00
34.0
21.00
1.89
HSK A 63 SEMC 22X60
63
22.00
40.0
60.00
19.00
34.0
31.00
1.12
HSK A 63 SEMC 27X60
63
27.00
48.0
60.00
21.00
34.0
33.00
1.28
HSK A 63 SEMC 32X60
63
32.00
58.0
60.00
24.00
34.0
38.00
0.08
HSK A 63 SEMC 40X70
63
40.00
72.0
70.00
27.00
44.0
41.00
2.10
HSK A 100 SEMC 16X60
100
16.00
32.0
60.00
17.00
31.0
27.00
2.39
HSK A 100 SEMC 22X60
100
22.00
40.0
60.00
19.00
31.0
31.00
2.51
HSK A 100 SEMC 27X60
100
27.00
48.0
60.00
21.00
31.0
33.00
2.60
HSK A 100 SEMC 32X60
100
32.00
58.0
60.00
24.00
31.0
38.00
2.96
HSK A 100 SEMC 40X70
100
40.00
70.0
70.00
27.00
41.0
41.00
3.68
HSK A 100 SEMC 50X80
100
50.00
90.0
80.00
30.00
51.0
46.00
5.12
