	Taper adapters
Sub Application

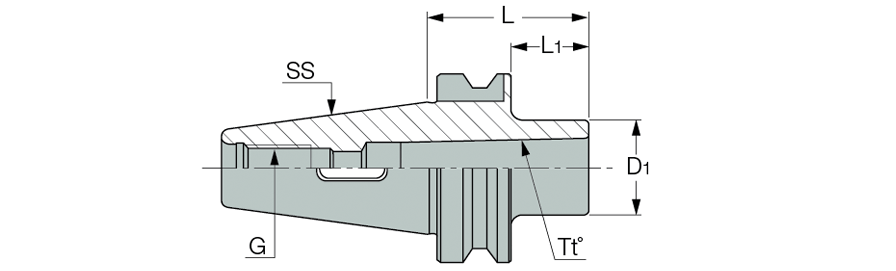

BT-MT : DIN 6383 / DIN228-2 form D tang Morse taper adapter with BT MAS-403 taper shank.

Designation	S.s	Tt°	L	L1	D1	G	Kg
BT30 MT1X 45	30	MT1	45.00	25.0	25.0	M12	0.47
BT30 MT2X 60	30	MT2	60.00	32.0	32.0	M12	0.55
BT40 MT1X 45	40	MT1	45.00	25.0	25.0	M16	1.07
BT40 MT1X120	40	MT1	120.00	25.0	25.0	M16	1.40
BT40 MT2X 60	40	MT2	60.00	32.0	32.0	M16	1.12
BT40 MT2X120	40	MT2	120.00	32.0	32.0	M16	1.50
BT40 MT3 X75	40	MT3	75.00	40.0	40.0	M16	1.24
BT40 MT3X139	40	MT3	139.00	40.0	40.0	M16	1.70
BT40 MT4 X95	40	MT4	95.00	50.0	50.0	M16	1.49
BT50 MT1X 45	50	MT1	45.00	25.0	25.0	M24	3.77
BT50 MT1X120	50	MT1	120.00	25.0	25.0	M24	4.08
BT50 MT1X180	50	MT1	180.00	25.0	25.0	M24	4.34
BT50 MT2X 45	50	MT2	45.00	32.0	32.0	M24	3.71
BT50 MT2X135	50	MT2	135.00	32.0	32.0	M24	4.30
BT50 MT2X180	50	MT2	180.00	32.0	32.0	M24	4.58
BT50 MT3X 45	50	MT3	45.00	40.0	40.0	M24	3.62
BT50 MT3X150	50	MT3	150.00	40.0	40.0	M24	4.63
BT50 MT3X180	50	MT3	180.00	40.0	40.0	M24	4.93
BT50 MT4X 75	50	MT4	75.00	50.0	50.0	M24	3.74
BT50 MT4X180	50	MT4	180.00	50.0	50.0	M24	5.36
BT50 MT5X105	50	MT5	105.00	70.0	70.0	M24	4.20
