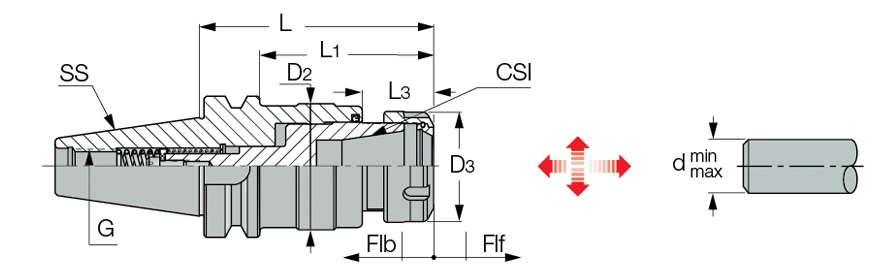

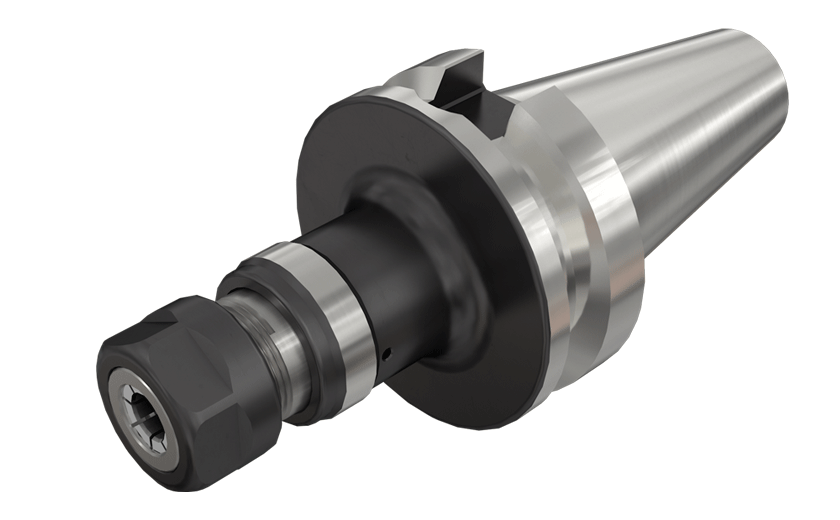

| GTI BT-ER (Tapping) : DIN 6499 ER tapping attachments with BT MAS-403 tapered shanks. |
|
|
|
|
|
| Designation |
S.s |
C.Si |
Tap
min |
Tap
max |
d
min |
d
max |
L |
L1 |
L3 |
D3 |
D2 |
Flf |
Flb |
G |
Kg |
|
GTI BT40 ER16
|
40 |
ER16 |
M3 |
M10 |
0.5 |
10.0 |
84.20 |
52.7 |
24.60 |
28.00 |
29.50 |
8.0 |
3.0 |
M16 |
1.25 |
|
GTI BT40 ER32
|
40 |
ER32 |
M6 |
M20 |
2.0 |
20.0 |
106.80 |
79.8 |
33.00 |
50.00 |
56.50 |
9.0 |
4.0 |
M16 |
2.00 |
|
GTI BT40 ER40
|
40 |
ER40 |
M6 |
M28 |
3.0 |
26.0 |
124.80 |
97.8 |
51.00 |
63.00 |
56.50 |
9.0 |
4.0 |
M16 |
2.30 |
|
GTI BT50 ER16
|
50 |
ER16 |
M3 |
M10 |
0.5 |
10.0 |
106.80 |
68.8 |
24.60 |
28.00 |
29.50 |
8.0 |
3.0 |
M24 |
4.05 |
|
GTI BT50 ER32
|
50 |
ER32 |
M6 |
M20 |
2.0 |
20.0 |
114.20 |
77.2 |
33.00 |
50.00 |
56.50 |
9.0 |
4.0 |
M24 |
4.72 |
|
GTI BT50 ER40
|
50 |
ER40 |
M6 |
M28 |
3.0 |
26.0 |
133.20 |
95.2 |
51.00 |
63.00 |
56.50 |
9.0 |
4.0 |
M24 |
5.04 |
|
|
For Adaptation Click on "More Info".
|
 |
    |
|
|
|
