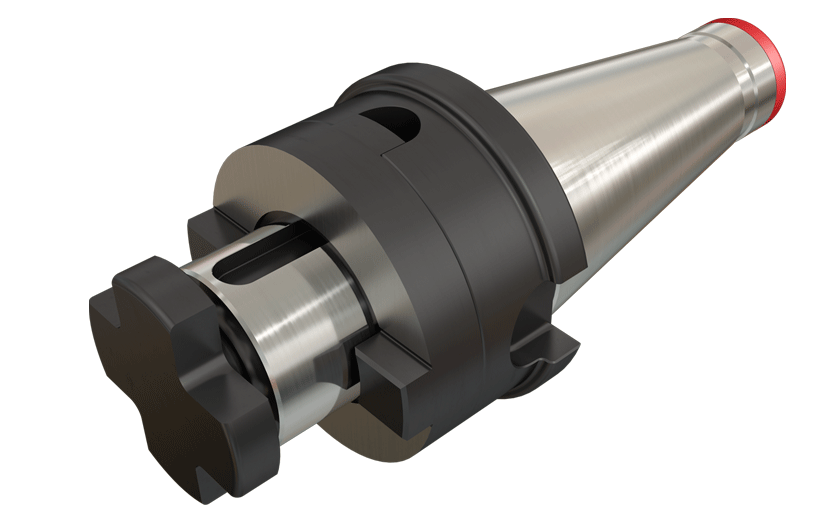

DIN2080-SEMC : DIN6358 COMBI shell mill holders with DIN2080 A tapered shanks.

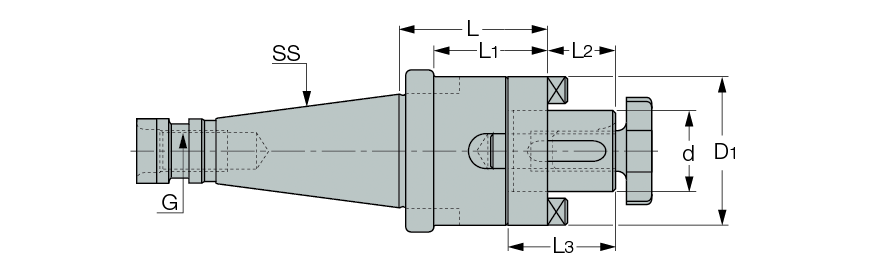

Designation	SS	d	L2	L	L1	L3	D1	G	Kg
DIN2080 30 SEMC 16X 35	30	16.00	17.00	35.00	25.4	27.00	32.0	M12	0.42
DIN2080 30 SEMC 22X 35	30	22.00	19.00	35.00	25.4	31.00	40.0	M12	0.47
DIN2080 30 SEMC 27X 35	30	27.00	21.00	35.00	25.4	33.00	48.0	M12	0.56
DIN2080 30 SEMC 32X 50	30	32.00	24.00	50.00	40.4	38.00	58.0	M12	0.65
DIN2080 40 SEMC 16X 52	40	16.00	17.00	52.00	40.4	27.00	32.0	M16	0.99
DIN2080 40 SEMC 22X 52	40	22.00	19.00	52.00	40.4	31.00	40.0	M16	1.01
DIN2080 40 SEMC 27X 52	40	27.00	21.00	52.00	40.4	33.00	48.0	M16	1.26
DIN2080 40 SEMC 32X 52	40	32.00	24.00	52.00	40.4	38.00	58.0	M16	1.42
DIN2080 40 SEMC 40X 52	40	40.00	27.00	52.00	40.4	41.00	70.0	M16	1.76
DIN2080 50 SEMC 16X 55	50	16.00	17.00	55.00	39.8	27.00	32.0	M24	2.89
DIN2080 50 SEMC 22X 55	50	22.00	19.00	55.00	39.8	31.00	40.0	M24	3.28
DIN2080 50 SEMC 27X 55	50	27.00	21.00	55.00	39.8	33.00	48.0	M24	3.13
DIN2080 50 SEMC 32X 55	50	32.00	24.00	55.00	39.8	38.00	58.0	M24	3.35
DIN2080 50 SEMC 40X 55	50	40.00	27.00	55.00	39.8	41.00	70.0	M24	3.66
DIN2080 50 SEMC 50X 55	50	50.00	30.00	55.00	39.8	46.00	90.0	M24	4.18
