DIN2080-DC :

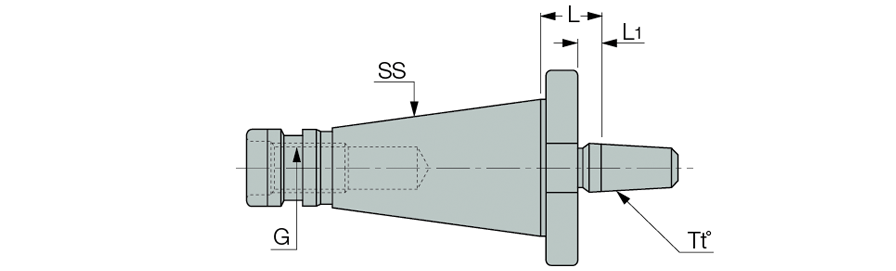

DIN 238 drill chuck arbor with DIN 2080 taper shank.
Designation
S.s
Tt°
L
L1
G
Kg
DIN2080 30 DC B16X 20
30
B16
20.00
5.4
M12
0.41
DIN2080 40 DC B16X 22
40
B16
22.00
10.4
M16
0.89
DIN2080 40 DC B18X 25
40
B18
25.00
13.4
M16
0.92
DIN2080 50 DC B16X 25
50
B16
25.00
9.8
M24
2.88
DIN2080 50 DC B18X 25
50
B18
25.00
9.8
M24
2.91
