	Bridgeport R-8
Sub Application

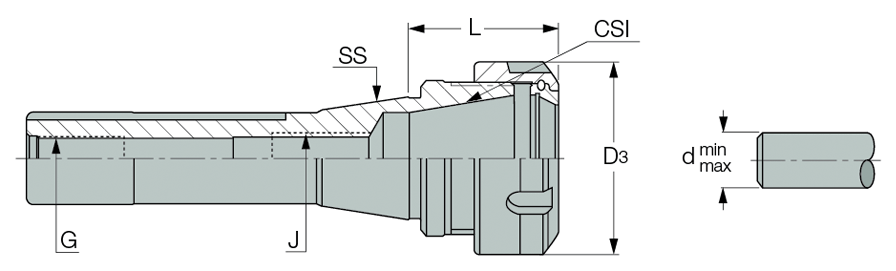

R-8 ER : A DIN 6499 ER collet chuck with Bridgeport adaptation.

Designation	S.s	C.Si	d min	d max	L	D3	J	G	Kg
R-8 ER32X40	R-8	ER32	2.0	20.0	40.00	50.00	M12	7/16-20	0.60
R-8 ER40X72	R-8	ER40	3.0	26.0	72.00	63.00	M12	7/16-20	1.17
