SET ER-SPR-AA : Sets of DIN 6499 ER 'AA' ultra precise spring collets with Hard Touch coating which increases wear resistance, improves corrosion protection, prolongs the surface finish quality and maintains longer run-out accuracy.

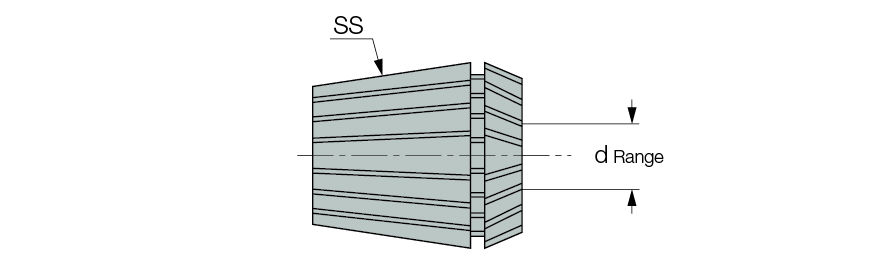

Designation	S.s	Qty	d range	d min	d max
SET ER11 SPR 7 AA	ER11	7	0.5-7	0.5	7.0
SET ER16 SPR 10 AA	ER16	10	0.5-10	0.5	10.0
SET ER20 SPR 12 AA	ER20	12	1-13	1.0	13.0
SET ER25 SPR 15 AA	ER25	15	1-16	1.0	16.0
SET ER32 SPR 18 AA	ER32	18	2-20	2.0	20.0
SET ER40 SPR 23 AA	ER40	23	3-26	3.0	26.0
