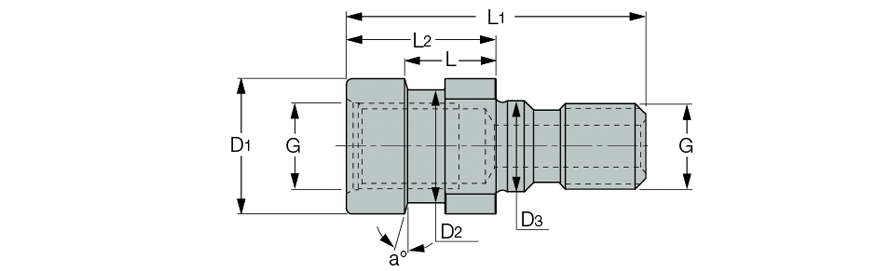

PS OTT-BT (Pull stud) :
BT/SK pull stud with OTT system retention knob.
Designation
S.s
G
D1
D2
D3
L
L1
L2
a°
PS OTT BT40 M16
40
M16
25.0
21.10
17.00
16.60
56.0
28.00
15
PS OTT BT50 M24
50
M24
39.3
32.00
25.00
13.35
65.0
25.00
15
