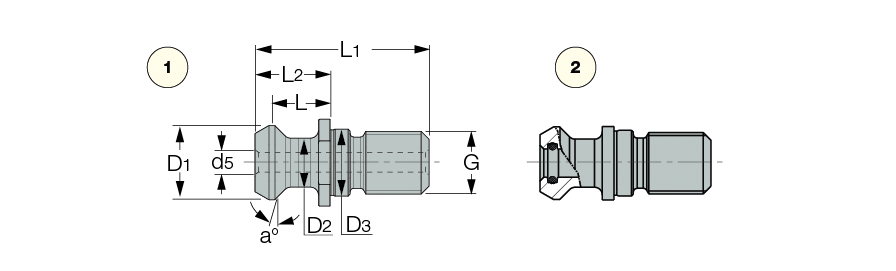

PS BT-MAZAK (Pull stud) :
BT pull stud with ANSI Retention knob, for MAZAK machines.
Add "O" for O-Ring on dimensions d.
Designation
S.s
G
D1
D2
D3
d5
L
L1
L2
a°
Fig
PS BT40 45 M16 MAZAK B
40
M16
18.8
12.40
17.00
7.0
14.03
44.1
19.10
45
1
PS BT40 45 M16 MAZAK B O
40
M16
18.8
12.40
17.00
7.0
14.03
44.1
19.10
45
2
PS BT50 45 M24 MAZAK B
50
M24
29.0
20.80
25.00
8.0
17.58
65.2
25.20
45
1
