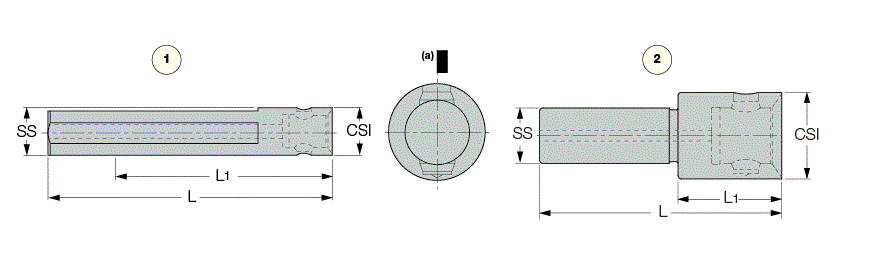

ST-MB :  MB modular connection system with straight cylindrical shanks.
 (a)Cutting edge position

COOLANT
  Designation
SS
CSI
L
L1Max overhang.
Kg
Fig
  ST 16-MB16  16  MB16  100.00  66.0  0.17  1
  ST 20-MB20  20  MB20  125.00  85.0  0.28  1
  ST 25-MB32  25  MB32  100.00  35.0  0.41  2
  ST 32-MB50  32  MB50  140.00  60.0  0.42  2

Please verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability
