F45KT :

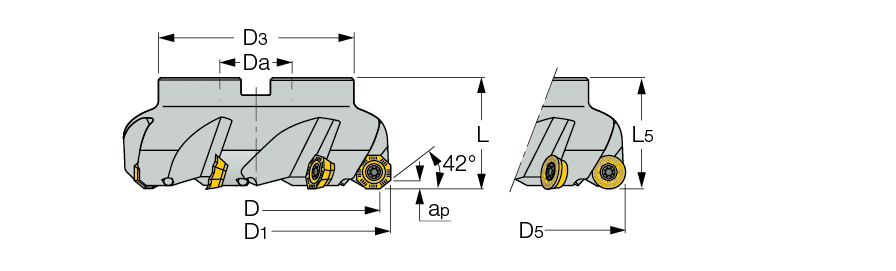

HELIOCTO 45° face mills, using octagonal and round inserts.
For Adaptation Click on Info.
Designation
D
D1
D5
Z
Ap
L
L5
Da
Rd°
Rd°(5)
Arbor
Kg
F45KT D050-22-R06
50.00
59.4
60.70
4
2.50
40.00
40.50
22.00
4.20
5.70
A
0.34
F45KT D063-R06 J
63.00
72.4
73.70
5
2.50
50.00
50.50
25.40
3.20
4.00
A
0.60
F45KT D063-22-R06
63.00
72.4
73.70
5
2.50
40.00
40.50
22.00
3.20
4.00
A
0.48
F45KT D080-R06 J
80.00
89.4
90.70
6
2.50
50.00
50.50
25.40
2.50
2.90
B
1.00
F45KT D080-27-R06
80.00
89.4
90.70
6
2.50
50.00
50.50
27.00
2.50
2.90
B
0.97
F45KT D100-R06 J
100.00
109.4
110.70
7
2.50
60.00
60.50
31.75
1.90
2.20
B
1.69
F45KT D100-32-R06
100.00
109.4
110.70
7
2.50
50.00
50.50
32.00
1.90
2.20
B
1.49
F45KT D125-R06 J
125.00
134.4
135.70
8
2.50
60.00
60.50
38.10
1.40
1.60
B
2.85
F45KT D125-40-R06
125.00
134.4
135.70
8
2.50
63.00
63.50
40.00
1.40
1.60
B
2.97
