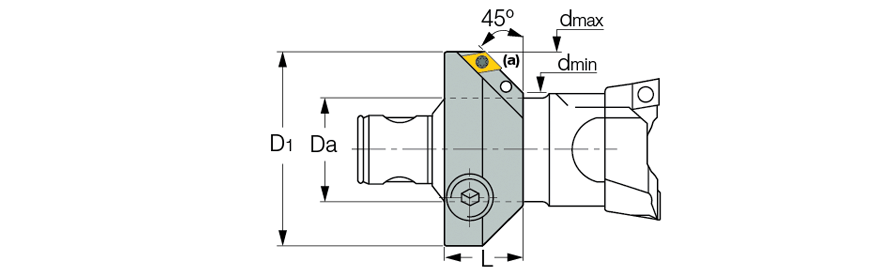

| CHA : 45° chamfering holders used on the MB modular boring system. |
|
|
|
|
|
| Designation |
d
min |
d
max |
Da |
D1 |
L |
Kg |
|
CHA 16-45
|
18.0 |
28.0 |
16.00 |
28.0 |
13.00 |
0.06 |
|
CHA 20-45
|
23.0 |
32.0 |
20.00 |
32.0 |
15.00 |
0.07 |
|
CHA 25-45
|
28.0 |
43.0 |
25.00 |
43.0 |
18.00 |
0.12 |
|
CHA 32-45
|
35.0 |
54.0 |
32.00 |
54.0 |
22.00 |
0.20 |
|
CHA 40-45
|
46.0 |
72.0 |
40.00 |
72.0 |
30.00 |
0.53 |
|
CHA 50-45
|
56.0 |
95.0 |
50.00 |
95.0 |
38.00 |
1.15 |
|
CHA 63-45
|
75.0 |
125.0 |
63.00 |
125.0 |
46.00 |
2.45 |
|
To minimize mismatch use insert radius 0.2 mm
(a) Only one insert can be mounted on either one of the two pockets.
|
 |
    |
|
|
|
