BHFH :

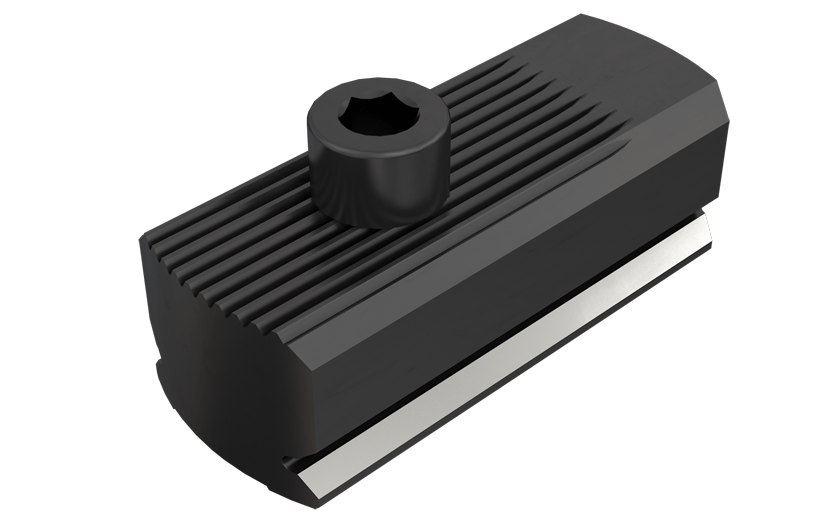

Slides for fine boring holders, used on the MB boring modular system.

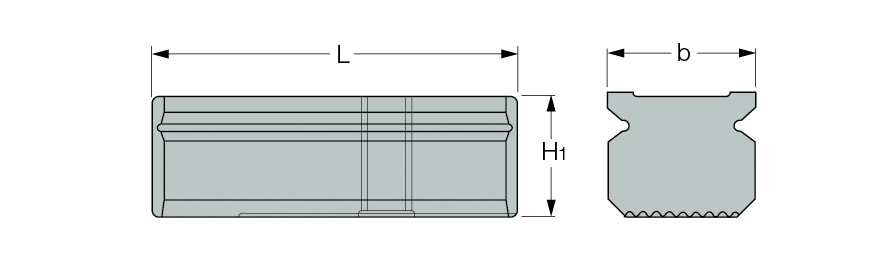

Designation
H1
b
L
Kg
BHFH 30X75
25.0
30.5
75.00
0.43
BHFH 30X93
25.0
30.5
93.00
0.53
BHFH 30X135
25.0
30.5
135.00
0.76
BHFH 40X133
40.0
40.0
133.00
1.53
BHFH 40X200
40.0
40.0
200.00
2.30
BHFH 40X300
40.0
40.0
300.00
3.47
BHFH 40X400
40.0
40.0
400.00
4.56
