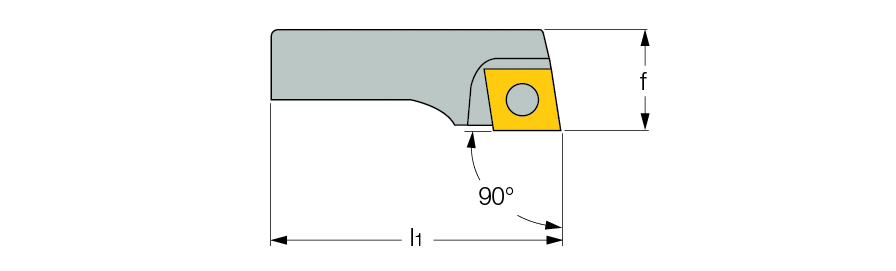

IHRF :  80° rhombic insert holders for mounting on the MB fine boring heads.


Int. 80°diamond 90° approach   ITS-BORE system
  Designation
f
l1		 d
Range
Insert
  IHRF 16  8.0  17.00  18-24  CCGT 0602...
  IHRF 20  8.5  21.00  22-30  CCGT 0602...
  IHRF 25  10.0  26.50  28-40  CCGT 0602...
  IHRF 32  11.5  34.50  35-53  CCGT 0602...
  IHRF 40  14.0  44.00  48-66  CCGT 09T3...
  IHRF 50  19.0  52.00  54-86  CCGT 09T3...
