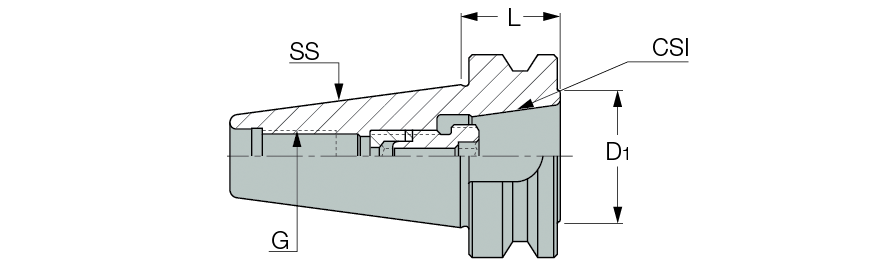

BT-ER-CLICKIN :  BT MAS 403 AD tapered shanks to CLICKIN quick change connection adapters.


RUNOUT (INTERNAL) 0.003  TAPER  HARDNESS 58-60  SURFACE FINISH N5
G2.5/20000 RPM  COOLANT
  Designation
SS
CSI
L
D1
G
Kg
  BT40 ER32 CLICK-IN  40  32 SRF  28.00  41.0  M16  .83
  BT50 ER32 CLICK-IN  50  32 SRF  39.00  41.0  M24  3.46

Tightening torque: 24 Kgxm
Balanced to G2.5/20,000 RPM.

For Adaptation Click on "More Info".
