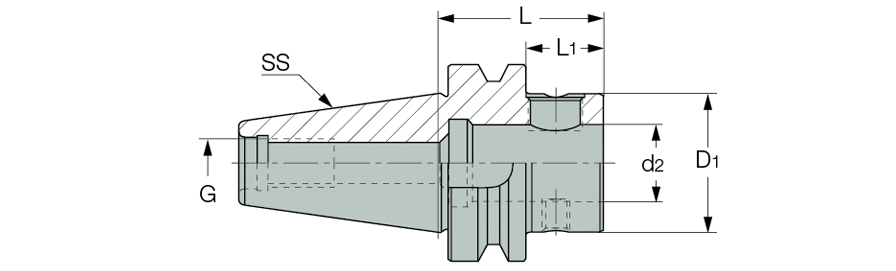

BT-CF (CLICKFIT) :  CLICKFIT modular system connections with BT MAS-403 AD tapered shanks.


RUNOUT (INTERNAL) 0.003  TAPER  HARDNESS 58-60  SURFACE FINISH N5
COOLANT
  Designation
SS
d2
L
L1
D1
G
Kg
  BT40 CF4-L  40  25.00  110.00  83.0  44.5  M16  1.74
  BT40 CF4-S  40  25.00  52.00  25.0  44.5  M16  1.08
  BT50 CF4-L  50  25.00  115.00  77.0  44.5  M24  4.52
  BT50 CF4-S  50  25.00  63.00  25.0  44.5  M24  3.71

For Adaptation Click on "More Info".
B is the designation for coolant through flange.
Tightening torque: 6 Kgxm
