HSK A-CF (CLICKFIT) :  Modular connections (CLICKFIT) with HSK DIN69893/A taper shanks.
 .

RUNOUT (INTERNAL) 0.003  HARDNESS 58-60  SURFACE FINISH N5  COOLANT

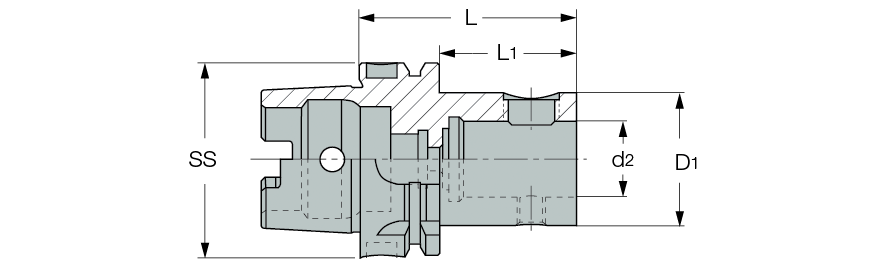

  Designation
SS
d2
L
L1
D1
Kg
  HSK A 63 CF4-S  63  25.00  70.00  44.0  44.5  1.00
  HSK A 80 CF4-S  80  25.00  73.00  47.0  44.5  1.50
  HSK A 100 CF4-S  100  25.00  76.00  47.0  44.5  2.42

Tightening torque: 6 Kgxm
A cooling tube must be used with all coolant through HSK spindles (should be ordered separately).
For shank dimensions, Click on "More Info".
