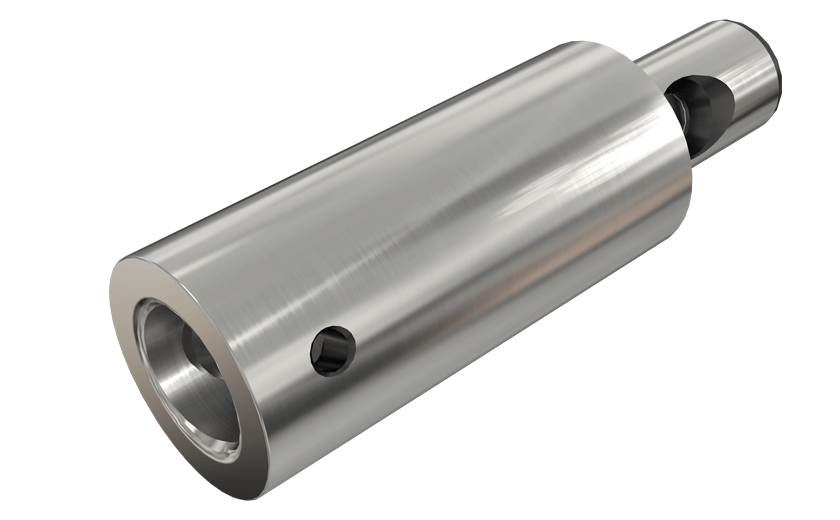

 EX CF (CLICKFIT Extension) :  CLICKFIT Extensions Adapter. Cutting Conditions Machine Power

 For Adaptation Click on Info.

CLICKFIT

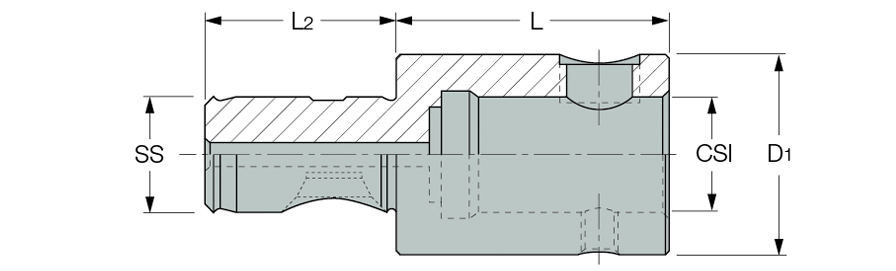

  Designation
S.s
C.Si
d
l1
L2
D1
d2
Kg
  EX CF4-L  CF4  CF4  25.00  100.00  42.00  44.0  25.00  1.18
  EX CF4-S  CF4  CF4  25.00  60.00  42.00  44.0  25.00  0.95
