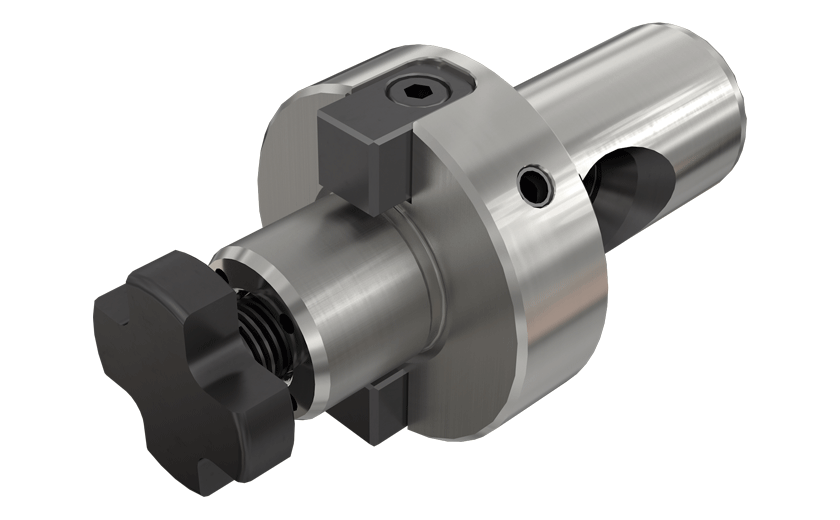

 SEM-CF (CLICKFIT) :  DIN 3937 shell mill holder with a CLICKFIT quick change adaptation. Cutting Conditions Machine Power

 For Adaptation Click on Info.

CLICKFIT

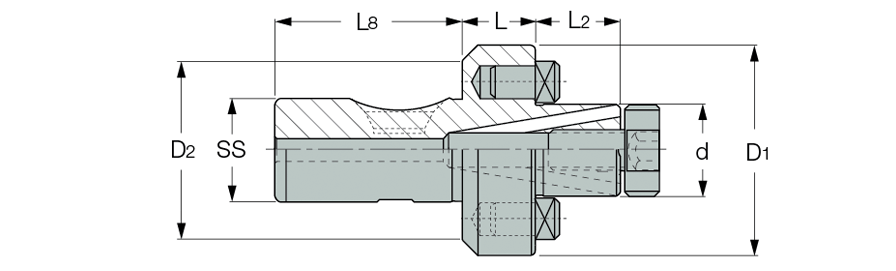

  Designation
S.s
d
D1
D2
d2
L2
l1
L8
Kg
  SEM 22 CF4 C  CF4  22.00  47.0  44.00  25.00  19.00  16.00  42.0  0.47
