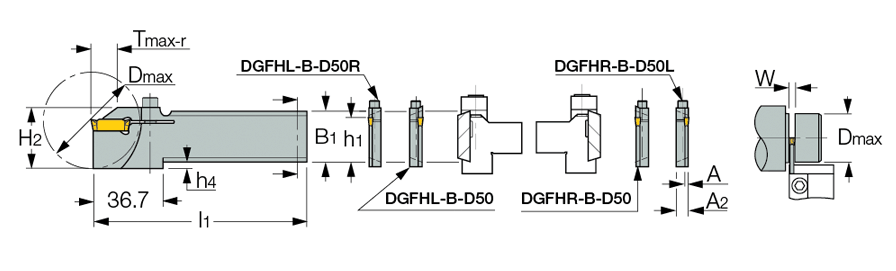

| DGFHR/L-B-D..(R/L) : Double- and single-ended, parting and grooving reinforced blades for double-ended DGN inserts. |
|
|
|
|
|
| Designation |
B1 |
W
min |
W
max |
A |
A2 |
l1 |
H2 |
h1 |
h4 |
Tmax-r |
D
max |
R/L |
|
DGFHL 26B-2D50
|
26.0 |
1.90 |
2.50 |
1.60 |
8.0 |
110.00 |
33.7 |
21.4 |
3.6 |
18.00 |
42.0 |
L |
|
DGFHR 26B-2D50
|
26.0 |
1.90 |
2.50 |
1.60 |
8.0 |
110.00 |
33.7 |
21.4 |
3.6 |
18.00 |
42.0 |
R |
|
DGFHL 26B-2D50R
|
26.0 |
1.90 |
2.50 |
1.60 |
8.0 |
110.00 |
31.5 |
21.4 |
3.7 |
18.00 |
50.0 |
R |
|
DGFHR 26B-2D50L
|
26.0 |
1.90 |
2.50 |
1.60 |
8.0 |
110.00 |
31.5 |
21.4 |
3.7 |
18.00 |
50.0 |
L |
|
DGFHL 26B-3D50
|
26.0 |
3.00 |
3.18 |
2.40 |
8.0 |
110.00 |
31.5 |
21.4 |
3.7 |
18.00 |
30.0 |
L |
|
DGFHR 26B-3D50
|
26.0 |
3.00 |
3.18 |
2.40 |
8.0 |
110.00 |
31.5 |
21.4 |
3.7 |
18.00 |
30.0 |
R |
|
DGFHL 26B-3D50R
|
26.0 |
3.00 |
3.18 |
2.40 |
8.0 |
110.00 |
31.5 |
21.4 |
3.7 |
18.00 |
50.0 |
L |
|
DGFHR 26B-3D50L
|
26.0 |
3.00 |
3.18 |
2.40 |
8.0 |
110.00 |
31.5 |
21.4 |
3.7 |
18.00 |
50.0 |
R |
|
DGFHL 32B-2D50
|
32.0 |
1.90 |
2.50 |
1.60 |
8.0 |
120.00 |
31.5 |
24.8 |
- |
18.00 |
42.0 |
L |
|
DGFHR 32B-2D50
|
32.0 |
1.90 |
2.50 |
1.60 |
8.0 |
120.00 |
31.5 |
24.8 |
- |
18.00 |
42.0 |
R |
|
DGFHL 32B-2D50R
|
32.0 |
1.90 |
2.50 |
1.60 |
8.0 |
120.00 |
31.5 |
24.8 |
- |
18.00 |
50.0 |
L |
|
DGFHR 32B-2D50L
|
32.0 |
1.90 |
2.50 |
1.60 |
8.0 |
120.00 |
31.5 |
24.8 |
- |
18.00 |
50.0 |
R |
|
DGFHL 32B-3D50
|
32.0 |
3.00 |
3.18 |
2.40 |
8.0 |
120.00 |
31.5 |
24.8 |
- |
18.00 |
42.0 |
L |
|
DGFHR 32B-3D50
|
32.0 |
3.00 |
3.18 |
2.40 |
8.0 |
120.00 |
31.5 |
24.8 |
- |
18.00 |
42.0 |
R |
|
DGFHL 32B-3D50R
|
32.0 |
3.00 |
3.18 |
2.40 |
8.0 |
120.00 |
31.5 |
24.8 |
- |
18.00 |
50.0 |
L |
|
DGFHR 32B-3D50L
|
32.0 |
3.00 |
3.18 |
2.40 |
8.0 |
120.00 |
31.5 |
24.8 |
- |
18.00 |
50.0 |
R |
|
Insert limit is Tmax=18 mm. If deeper penetration is required, the insert should be modified into single-ended by the user.
DG..1.0 insert can be mounted into pocket sizes 2 and 3. Inthat case the pocket width has to be modified -click on "More Info"
|
 |
    |
