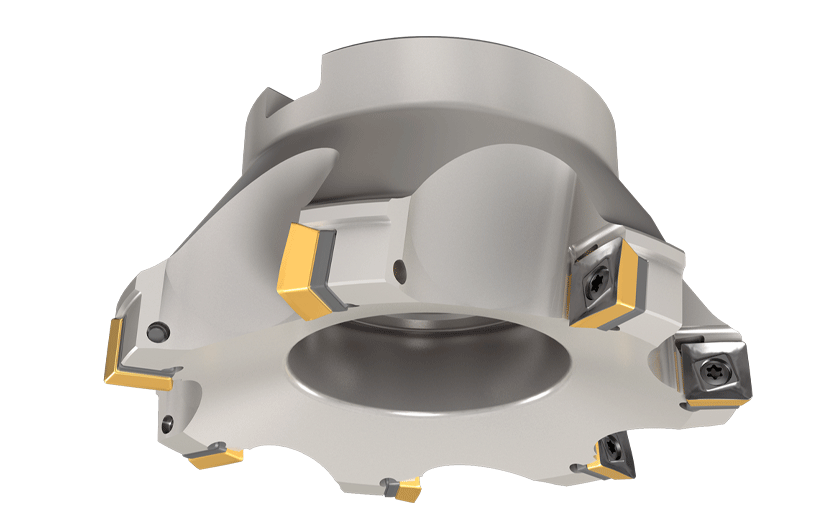

F90SD-12 :
90° Face Mills using SDMT/R inserts.
Optional: SDMT 12T3.. inserts with TSD 12T3M Seat.
For Adaptation Click on Info.

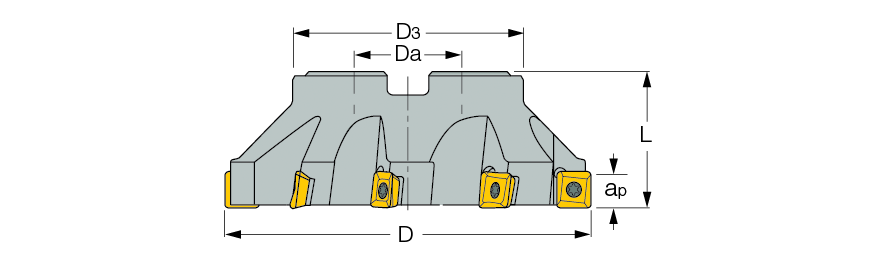

Designation
D
Z
L
Da
Arbor
Ap
Kg
F90SD D 50-22-CP12
50.00
3
40.00
22.00
A
11.80
0.25
F90SD D 50-22-12
50.00
5
40.00
22.00
A
11.80
0.25
F90SD D 63-CP12....J
63.00
4
50.00
25.40
A
11.80
0.58
F90SD D 63-22-CP12
63.00
4
40.00
22.00
A
11.80
0.38
F90SD D 63-12......J
63.00
6
50.00
25.40
A
11.80
0.61
F90SD D 63-22-12
63.00
6
40.00
22.00
A
11.80
0.43
F90SD D 80-CP12....J
80.00
4
50.00
25.40
B
11.80
0.76
F90SD D 80-27-CP12
80.00
5
50.00
27.00
B
11.80
0.73
F90SD D 80-12......J
80.00
6
50.00
25.40
B
11.80
0.79
F90SD D80-27-12
80.00
6
50.00
27.00
B
11.80
0.82
F90SD D100-CP12....J
100.00
5
50.00
31.75
B
11.80
1.31
F90SD D100-32-CP12
100.00
5
50.00
32.00
B
11.80
1.07
F90SD D100-12.....J
100.00
8
50.00
31.75
B
11.80
1.38
F90SD D100-32-12
100.00
8
50.00
32.00
B
11.80
1.42
F90SD D125-CP12....J
125.00
7
63.00
38.10
B
11.80
2.23
F90SD D125-40-CP12
125.00
7
63.00
40.00
B
11.80
2.17
F90SD D125-12......J
125.00
9
63.00
38.10
B
11.80
2.41
F90SD D125-40-12
125.00
9
63.00
40.00
B
11.80
2.60
F90SD D160-CP12....J
160.00
8
63.00
50.80
B
11.80
3.96
F90SD D160-40-CP12
160.00
8
63.00
40.00
B
11.80
3.50
F90SD D160-12......J
160.00
10
63.00
50.80
B
11.80
2.97
F90SD D160-40-12
160.00
10
63.00
40.00
B
11.80
3.78
F90SD D200-60-12
200.00
13
63.00
60.00
C
11.80
6.70
