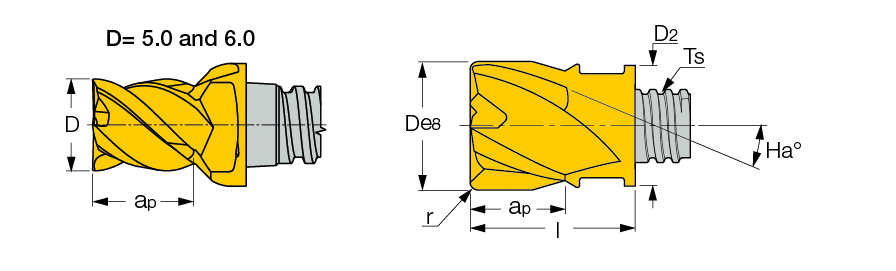

MM EC-4 : MULTI-MASTER 4 flute, 30° and 45° helix, interchangeable solid carbide endmill heads with various corner radii.

Designation	D	r	Ha°	Flute	ap	Ts	D2	l	fz (min)	fz (max)	Grade
MM EC.250B20R000-4T05	.00	.00	.0	4	.00	T05	.00	.00	.00	.00	IC908
MM EC.312B20R000-4T05	.00	.00	.0	4	.00	T05	.00	.00	.00	.00	IC908
MM EC.312A20R015-4T05	.00	.00	.0	4	.00	T05	.00	.00	.00	.00	IC908
MM EC.312B20R015-4T05	.00	.00	.0	4	.00	T05	.00	.00	.00	.00	IC908
MM EC.312A20R030-4T05	.00	.00	.0	4	.00	T05	.00	.00	.00	.00	IC908
MM EC.312B20R030-4T05	.00	.00	.0	4	.00	T05	.00	.00	.00	.00	IC908
MM EC.312A20R060-4T05	.00	.00	.0	4	.00	T05	.00	.00	.00	.00	IC908
MM EC.312B20R060-4T05	.00	.00	.0	4	.00	T05	.00	.00	.00	.00	IC908
MM EC.375B27R000-4T06	.00	.00	.0	4	.00	T06	.00	.00	.00	.00	IC908
MM EC.375B47R000-4T06	.00	.00	.0	4	.00	T06	.00	.00	.00	.00	IC908
MM EC.375A27R015-4T06	.00	.00	.0	4	.00	T06	.00	.00	.00	.00	IC908
MM EC.375B27R015-4T06	.00	.00	.0	4	.00	T06	.00	.00	.00	.00	IC908
MM EC.375A27R030-4T06	.00	.00	.0	4	.00	T06	.00	.00	.00	.00	IC908
MM EC.375B27R031-4T06	.00	.00	.0	4	.00	T06	.00	.00	.00	.00	IC908
MM EC.375B27R062-4T06	.00	.00	.0	4	.00	T06	.00	.00	.00	.00	IC908
MM EC.500B37R000-4T08	12.70	.00	45.0	4	9.50	T08	.00	16.50	.00	.00	IC908
MM EC.500A37R015-4T08	12.70	.38	30.0	4	9.50	T08	.00	16.50	.00	.00	IC908
MM EC.500B37R015-4T08	12.70	.38	45.0	4	9.50	T08	.00	16.50	.00	.00	IC908
MM EC.500A37R030-4T08	12.70	.76	30.0	4	9.50	T08	.00	16.50	.00	.00	IC908
MM EC.500B37R031-4T08	12.70	.79	45.0	4	9.50	T08	.00	16.50	.00	.00	IC908
MM EC.500B37R062-4T08	12.70	1.57	45.0	4	9.50	T08	.00	16.50	.00	.00	IC908
MM EC.625B47R000-4T10	.00	.00	.0	4	.00	T10	.00	.00	.00	.00	IC908
MM EC.625A47R015-4T10	.00	.00	.0	4	.00	T10	.00	.00	.00	.00	IC908
MM EC.625A47R030-4T10	.00	.00	.0	4	.00	T10	.00	.00	.00	.00	IC908
MM EC.625B47R031-4T10	.00	.00	.0	4	.00	T10	.00	.00	.00	.00	IC908
MM EC.625A47R060-4T10	.00	.00	.0	4	.00	T10	.00	.00	.00	.00	IC908
MM EC.750B62R000-4T12	.00	.00	.0	4	.00	T12	.00	.00	.00	.00	IC908
MM EC.750A62R015-4T12	.00	.00	.0	4	.00	T12	.00	.00	.00	.00	IC908
MM EC.750A62R030-4T12	.00	.00	.0	4	.00	T12	.00	.00	.00	.00	IC908
MM EC.750B62R031-4T12	.00	.00	.0	4	.00	T12	.00	.00	.00	.00	IC908
MM EC.750A62R060-4T12	.00	.00	.0	4	.00	T12	.00	.00	.00	.00	IC908
MM EC.875B63R015-4T12	.00	.00	.0	4	.00	T12	.00	.00	.00	.00	IC908

For Clamping keys (should be ordered separately), tightening torques and clamping instructions, click on "More Info".
Do not apply lubricant to the threaded connection.
