3M E45AX-20 :  MILL2000, Heavy duty 45° endmills using 3M AXKT 2006... inserts with dovetail section shape, helical cutting edges and positive rake angle. Enable a secure clamping and high durability in rough applications.


Slanted shoulder. & chamfer.   Facing

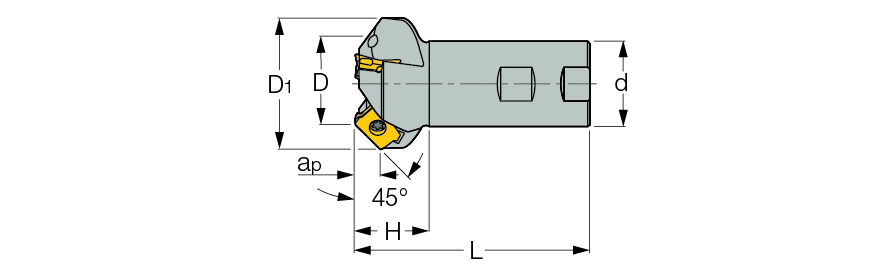

  Designation
D
D1
ap
Z
H
L
d
ShankW-Weldon
Kg
  3M E45AX D40-3-W40-20  40.00  62.0  10.00  3  35.00  110.00  40.00  W  1.10

For adaptation, click on "More Info".
