FR :

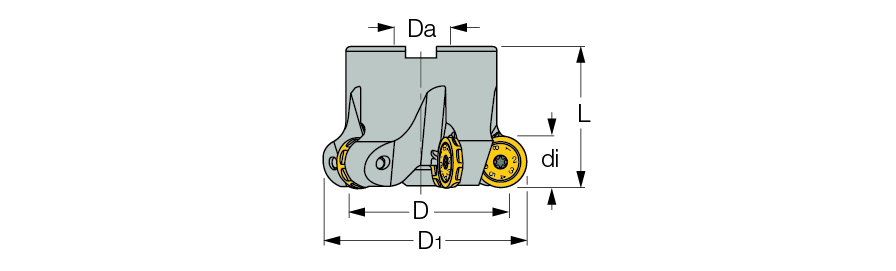

ROUNDMILL Face mills carrying round inserts for profiling and milling of round corners.
For Adaptation Click on Info.
Designation
D1
D
di
Z
L
Da
Rd°
Arbor
Kg
FR D034A050-04-22-16
50.0
34.00
16.000
4
54.00
22.00
12.00
A
0.26
FR D036A052-04-22-16
52.0
36.00
16.000
4
50.00
22.00
12.00
A
0.26
FR D047A063-05-22-16
63.0
47.00
16.000
5
45.00
22.00
9.00
A
0.40
FR D050A066-05-22-16
66.0
50.00
16.000
5
45.00
22.00
8.00
A
0.41
FR D064A080-06-27-16
80.0
64.00
16.000
6
50.00
27.00
6.00
B
0.62
FR D060A080-05-25.4-20 *
80.0
60.00
20.000
5
50.00
25.40
11.50
B
0.56
FR D060A080-05-27-20
80.0
60.00
20.000
5
50.00
27.00
11.50
B
0.58
FR D080A100-06-32-20
100.0
80.00
20.000
6
50.00
32.00
8.20
B
0.94
FR D105A125-07-40-20
125.0
100.00
20.000
7
63.00
40.00
6.00
B
0.20
FR D140A160-08-40-20
160.0
140.00
20.000
8
63.00
40.00
5.20
C
3.30
