HSK E-SRK :

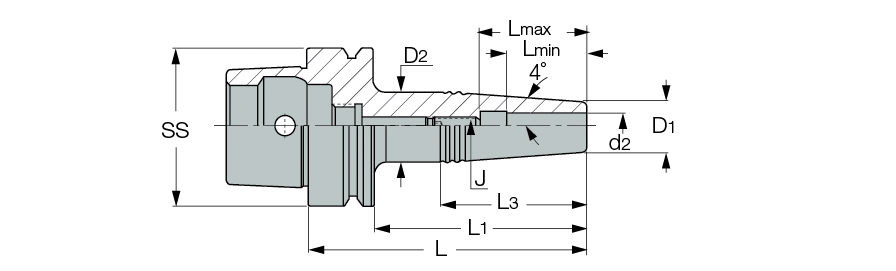

SHRINKIN thermal chuck with HSK DIN69893 Form E taper shank balanced to G2.5 at 40,000 RPM. To be used for carbide tools only.
Stopper screw key metric size.
Designation
S.s
d2
D1
D2
L
L1
L3
L
min
L
max
J
Key
Kg
HSK E 32 SRK 3X 45
32
3.00
10.0
13.00
65.00
45.0
30.00
10.0
16.0
M4
2.00
0.20
HSK E 40 SRK 3X 45
40
3.00
10.0
13.00
65.00
45.0
30.00
10.0
16.0
M5
2.50
0.70
HSK E 40 SRK 3X 80
40
3.00
10.0
19.00
100.00
80.0
64.00
10.0
16.0
M5
2.50
0.35
HSK E 50 SRK 3X 45
50
3.00
10.0
15.00
71.00
45.0
36.00
10.0
16.0
M5
2.50
0.32
HSK E 50 SRK 3X 80
50
3.00
10.0
19.00
106.00
80.0
64.00
10.0
16.0
M5
2.50
0.56
HSK E 63 SRK 3X 50
63
3.00
10.0
17.00
76.00
50.0
48.00
10.0
16.0
M6
3.00
0.78
HSK E 63 SRK 3X 80
63
3.00
10.0
19.00
106.00
80.0
64.00
10.0
16.0
M6
3.00
1.00
HSK E 32 SRK 4X 45
32
4.00
10.0
15.00
65.00
45.0
35.00
12.0
18.0
M4
2.00
0.20
HSK E 40 SRK 4X 45
40
4.00
10.0
15.00
65.00
45.0
35.00
12.0
18.0
M5
2.50
0.29
HSK E 40 SRK 4X 80
40
4.00
10.0
19.00
100.00
80.0
64.00
12.0
18.0
M5
2.50
0.34
HSK E 50 SRK 4X 45
50
4.00
10.0
15.00
71.00
45.0
36.00
12.0
18.0
M5
2.50
0.50
HSK E 50 SRK 4X 80
50
4.00
10.0
19.00
106.00
80.0
64.00
12.0
18.0
M5
2.50
0.57
HSK E 63 SRK 4X 50
63
4.00
10.0
17.00
76.00
50.0
48.00
12.0
18.0
M6
3.00
0.78
HSK E 63 SRK 4X 80
63
4.00
10.0
19.00
106.00
80.0
64.00
12.0
18.0
M6
3.00
0.83
HSK E 32 SRK 5X 45
32
5.00
10.0
15.00
65.00
45.0
35.00
15.0
25.0
M4
2.00
0.20
HSK E 40 SRK 5X 45
40
5.00
10.0
15.00
65.00
45.0
35.00
15.0
25.0
M4
2.00
0.29
HSK E 40 SRK 5X 80
40
5.00
10.0
19.00
100.00
80.0
64.00
15.0
25.0
M4
2.00
0.34
HSK E 50 SRK 5X 45
50
5.00
10.0
15.00
71.00
45.0
36.00
15.0
21.0
M6
3.00
0.32
HSK E 50 SRK 5X 80
50
5.00
10.0
19.00
106.00
80.0
64.00
15.0
21.0
M6
3.00
0.56
HSK E 63 SRK 5X 45
63
5.00
10.0
17.00
76.00
50.0
48.00
15.0
21.0
M6
3.00
0.78
HSK E 63 SRK 5X 80
63
5.00
10.0
19.00
106.00
80.0
64.00
15.0
21.0
M6
3.00
0.84
HSK E 32 SRK 6X 45
32
6.00
11.0
16.00
65.00
45.0
35.00
18.0
28.0
M4
2.00
0.20
HSK E 40 SRK 6X 45
40
6.00
11.0
16.00
65.00
45.0
35.00
18.0
28.0
M5
2.50
0.29
HSK E 40 SRK 6X 80
40
6.00
11.0
20.00
100.00
80.0
64.00
18.0
28.0
M5
2.50
0.35
HSK E 50 SRK 6X 45
50
6.00
11.0
16.00
71.00
45.0
36.00
18.0
28.0
M5
2.50
0.50
HSK E 50 SRK 6X 80
50
6.00
11.0
20.00
106.00
80.0
64.00
18.0
28.0
M5
2.50
0.57
HSK E 63 SRK 6X 50
63
6.00
11.0
18.00
76.00
50.0
48.00
18.0
24.0
M8
4.00
0.78
HSK E 63 SRK 6X 80
63
6.00
11.0
20.00
106.00
80.0
64.00
18.0
24.0
M8
4.00
0.85
HSK E 32 SRK 8X 45
32
8.00
14.0
20.00
65.00
45.0
42.00
25.0
35.0
M4
2.00
0.22
HSK E 40 SRK 8X 45
40
8.00
14.0
20.00
65.00
45.0
42.00
25.0
35.0
M5
2.50
0.31
HSK E 40 SRK 8X 80
40
8.00
14.0
23.00
100.00
80.0
64.00
25.0
35.0
M6
3.00
0.40
HSK E 50 SRK 8X 45
50
8.00
14.0
20.00
71.00
45.0
43.00
25.0
35.0
M6
3.00
0.52
HSK E 50 SRK 8X 80
50
8.00
14.0
23.00
106.00
80.0
64.00
25.0
35.0
M6
3.00
0.63
HSK E 63 SRK 8X 50
63
8.00
14.0
21.00
76.00
50.0
48.00
25.0
35.0
M6
3.00
0.81
HSK E 63 SRK 8X 80
63
8.00
16.0
23.00
106.00
80.0
64.00
25.0
35.0
M6
3.00
0.90
HSK E 32 SRK 10X 45
32
10.00
16.0
22.00
65.00
45.0
42.00
30.0
40.0
M4
2.00
0.26
HSK E 40 SRK 10X 45
40
10.00
16.0
22.00
65.00
45.0
42.00
30.0
40.0
M5
2.50
0.32
HSK E 40 SRK 10X 80
40
10.00
16.0
24.50
100.00
80.0
60.00
30.0
40.0
M8
4.00
0.40
HSK E 50 SRK 10X 45
50
10.00
16.0
22.00
71.00
45.0
42.00
30.0
37.0
M6
3.00
0.53
HSK E 50 SRK 10X 80
50
10.00
16.0
24.50
106.00
80.0
60.00
30.0
40.0
M8
4.00
0.65
HSK E 63 SRK 10X 50
63
10.00
16.0
23.00
76.00
50.0
48.00
30.0
40.0
M8
4.00
0.65
HSK E 63 SRK 10X 80
63
10.00
16.0
24.50
106.00
80.0
60.00
30.0
40.0
M8
4.00
0.93
HSK E 32 SRK 12X 45
32
12.00
20.0
25.00
65.00
45.0
35.60
32.0
40.0
M4
2.00
0.26
HSK E 40 SRK 12X 45
