	HSK
Sub Application

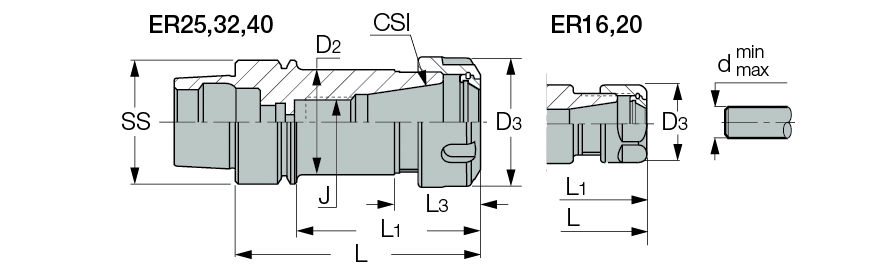

HSK E-ER : DIN 6499 ER collet chucks with HSK DIN 69893 form E taper shank balanced to G2.5 at 40,000 RPM.

Designation	S.s	C.Si	d min	d max	D3	D2	L	L1	L3	J	Kg
HSK E 32 ER16X 60	32	ER16	0.5	10.0	28.00	22.40	60.00	40.0	21.50	-	0.30
HSK E 32 ER20X 60	32	ER20	1.0	13.0	34.00	25.40	60.00	40.0	26.00	-	0.50
HSK E 32 ER25X 65	32	ER25	1.0	16.0	42.00	25.80	65.00	45.0	30.00	-	0.50
HSK E 40 ER16X 60	40	ER16	0.5	10.0	28.00	-	60.00	40.0	-	-	0.36
HSK E 40 ER16X 80	40	ER16	0.5	10.0	28.00	-	80.00	60.0	-	M10	0.45
HSK E 40 ER20X 80	40	ER20	1.0	13.0	34.00	-	80.00	60.0	-	M12	0.53
HSK E 40 ER25X 80	40	ER25	1.0	16.0	42.00	34.00	80.00	60.0	28.00	M18X1.5	0.54
HSK E 40 ER32X 80	40	ER32	2.0	20.0	50.00	40.40	80.00	60.0	31.00	M22X1.5	0.61
HSK E 50 ER16X 80	50	ER16	0.5	10.0	28.00	-	80.00	54.0	-	M10	0.64
HSK E 50 ER16X100	50	ER16	0.5	10.0	28.00	-	100.00	74.0	-	M10	0.72
HSK E 50 ER20X 80	50	ER20	1.0	13.0	34.00	-	80.00	54.0	-	M12	0.70
HSK E 50 ER25X 80	50	ER25	1.0	16.0	42.00	32.40	80.00	54.0	28.00	M16	0.72
HSK E 50 ER32X 80	50	ER32	2.0	20.0	50.00	40.40	80.00	54.0	31.00	-	0.83
HSK E 50 ER32X100	50	ER32	2.0	20.0	50.00	40.40	100.00	74.0	31.00	M22X1.5	0.96
HSK E 63 ER16X 80	63	ER16	0.5	10.0	28.00	-	80.00	54.0	-	M10	1.43
HSK E 63 ER16X100	63	ER16	0.5	10.0	28.00	-	100.00	74.0	-	M10	1.00
HSK E 63 ER20X 75	63	ER20	1.0	13.0	34.00	-	75.00	49.0	-	-	1.10
HSK E 63 ER32X 80	63	ER32	2.0	20.0	50.00	40.40	80.00	54.0	31.00	-	1.10
HSK E 63 ER32X100	63	ER32	2.0	20.0	50.00	-	100.00	75.0	-	M22X1.5	1.45
HSK E 63 ER40X 80	63	ER40	3.0	26.0	63.00	-	80.00	54.0	34.00	-	1.70
