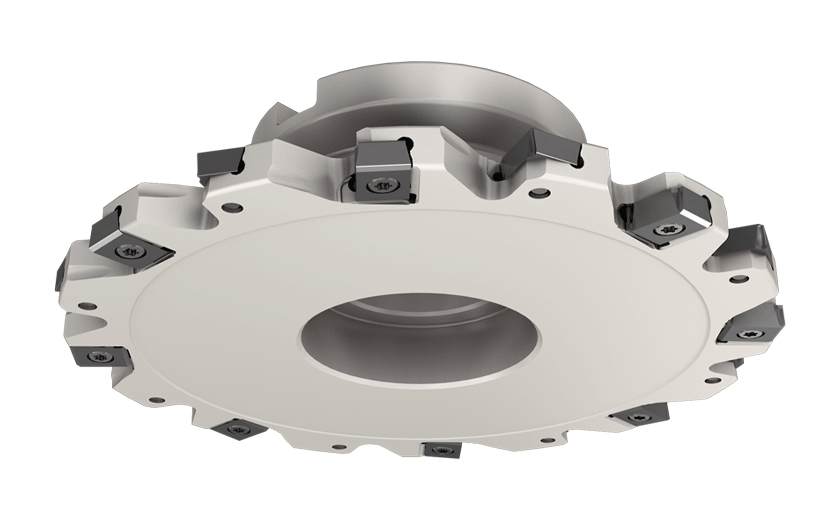

FDN-LN12 :  Full slot cutters with LNET 12 tangentially mounted inserts. A very effective solution for parting quality parts such as bearing caps at high cutting speeds (TANGSLOT).


Slotting      Side slotting   Bottom Shouldering
  Designation

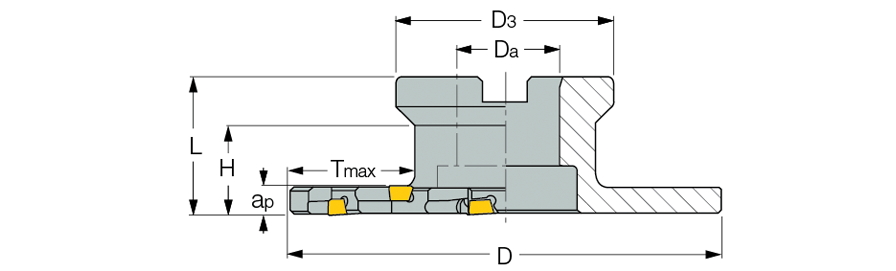

Z
Zeff
D
Da
D3
Tmax		 ap
min6.0-7.0 mm range is available on request		 ap
max12.0-14.6 mm range is available on request
H
L
ArborFor adaptation click on More Info
Kg
  FDN D080-07-22-LN12  8  4  80.00  22.00  45.00  22.00  7.00  8.50  28.20  40.00  A  0.39
  FDN D080-10-22-LN12  8  4  80.00  22.00  45.00  22.00  10.00  12.00  28.20  40.00  A  0.40
  FDN D100-07-27-LN12  10  5  100.00  27.00  55.00  25.00  7.00  8.50  28.50  40.00  B  0.44
  FDN D100-10-27-LN12  10  5  100.00  27.00  55.00  25.00  10.00  12.00  28.50  40.00  B  0.61
  FDN D125-07-32-LN12  12  6  125.00  32.00  65.00  34.50  7.00  8.50  32.00  45.00  B  0.60
  FDN D125-10-32-LN12  12  6  125.00  32.00  65.00  34.50  10.00  12.00  32.00  45.00  B  1.02
  FDN D160-10-40-LN12  16  8  160.00  40.00  80.00  44.00  10.00  12.00  33.50  50.00  B  1.76
  FDN D200-08-40-LN12  20  10  200.00  40.00  92.00  51.50  8.00  10.00  49.50  50.00  C  2.63
  FDN D200-10-40-LN12  20  10  200.00  40.00  92.00  51.50  10.00  12.00  49.50  50.00  C  2.95
  FDN D250-10-60-LN12  26  13  250.00  40.00  132.00  56.50  10.00  12.00  62.50  63.00  C  5.91

Slot width depends on the selected insert width.
Each tool is supplied with screws for the thinnest specified insert.
Please verify use of correct screw for the insert being used.
ap in 6.0-7.0 and 10.5-14.0 mm range available on request.
