FF FW :
FEEDMILL fast feed face mills using FF WOMT inserts. Can run at very high feed rates of up to 3.5 mm/tooth at small DOC, resulting in high metal removal rates.
For Adaptation Click on Info.

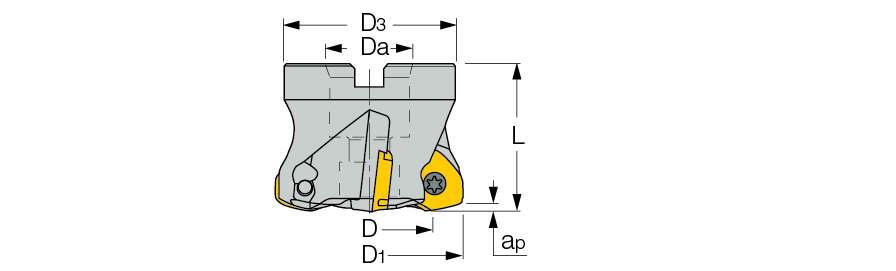

Designation
D1
D
Z
L
Ap
Da
Rd°
Arbor
Nxcm
Cool
Kg
FF FW D40-16-06-C
40.0
26.00
4
35.00
1.50
16.00
2.50
A
200
Y
0.30
FF FW D50-22-06-C
50.0
36.00
5
40.00
1.50
22.00
2.00
A
200
Y
0.45
FF FW D52-22-06-C
52.0
38.00
5
40.00
1.50
22.00
1.90
A
200
Y
0.48
FF FW D50-22.225-09-C
50.0
29.20
4
50.00
2.00
22.22
2.00
A
500
Y
0.51
FF FW D50-22.225-09-CP
50.0
29.20
3
50.00
2.00
22.22
4.00
A
500
Y
0.50
FF FW D50-22-09-C
50.0
29.20
4
50.00
2.00
22.00
4.00
A
500
Y
0.30
FF FW D50-22-09-CP
50.0
29.20
3
50.00
2.00
22.00
4.00
A
500
Y
0.50
FF FW D52-22-09-C
52.0
31.20
4
40.00
2.00
22.00
4.00
A
500
Y
0.54
FF FW D52-22-09-CP
52.0
31.20
3
40.00
2.00
22.00
4.00
A
500
Y
0.44
FF FW D63-22.225-09-C
63.0
42.20
5
50.00
2.00
22.22
3.00
A
500
Y
0.78
FF FW D63-22.225-09-CP
63.0
42.20
4
50.00
2.00
22.22
3.00
A
500
Y
0.77
FF FW D63-22-09-C
63.0
42.20
5
40.00
2.00
22.00
3.00
A
500
Y
0.47
FF FW D63-22-09-CP
63.0
42.20
4
40.00
2.00
22.00
3.00
A
500
Y
0.66
FF FW D63-27-09-C
63.0
42.20
5
50.00
2.00
27.00
3.00
A
500
Y
0.76
FF FW D66-22-09-C
66.0
45.20
5
40.00
2.00
22.00
2.80
A
500
Y
0.60
FF FW D66-27-09-C
66.0
45.20
5
50.00
2.00
27.00
2.80
A
500
Y
0.82
FF FW D80-31.75-09-C
80.0
59.20
5
60.00
2.00
31.75
0.50
A
500
Y
1.73
FF FW D80-32-09-C
80.0
59.20
5
50.00
2.00
32.00
2.00
A
500
Y
0.96
FF FW D100-31.75-09-C
100.0
79.20
6
63.00
2.00
31.75
2.00
B
500
Y
2.24
FF FW D100-32-09-C
100.0
79.20
6
50.00
2.00
32.00
1.50
B
500
Y
1.59
FF FW D125-38.1-09-C
125.0
104.20
7
63.00
2.00
38.10
1.00
B
500
Y
3.16
FF FW D125-40-09-C
125.0
104.20
7
63.00
2.00
40.00
1.00
B
500
Y
2.80
