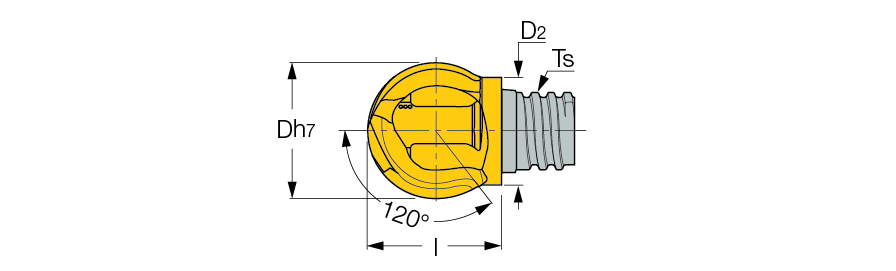

MM HBR :  MULTI-MASTER, high accuracy (h7 milling head diameter), may be used for both roughing and precision finishing applications. Center cutting, 240° spherical cutting profile. Recommended for finishing and may be used on hardened steel.
 Economical solution

Profiling
  Designation
D
Flute
Ts
D2
l
  Grade
  MM HBR100-2T05  10.00  2  T05  7.60  10.00 IC908
  MM HBR120-2T06  12.00  2  T06  9.60  11.60 IC908
  MM HBR.500-2T06  12.70  2  T06  9.60  12.25 IC908
  MM HBR160-2T08  16.00  2  T08  11.50  15.40 IC908
  MM HBR200-2T10  20.00  2  T10  15.20  18.40 IC908
  MM HBR250-2T12  25.00  2  T12  18.30  23.20 IC908
  MM HBR1.00-2T12  25.40  2  T12  18.30  23.40 IC908

For Clamping keys (should be ordered separately), tightening torques and clamping instructions, click on "More Info".
Do not apply lubricant to the threaded connection.
