MM HT :

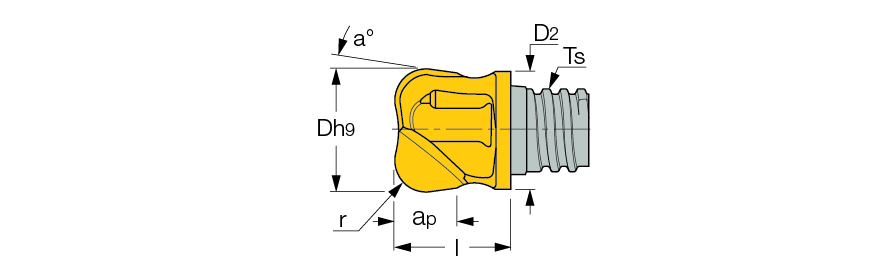

MULTI-MASTER interchangeable, torodial 2 flute, solid carbide heads.
ECONOMICAL SOLUTIONS
For tightening Torque Click on Info
Designation
D
Z
Ap
Ts
D2
l
a°
r
Tm
Grade
MM HT100C08R0.5-2T06
10.00
2
7.00
T06
9.60
12.40
5
0.50
r0.0-r1.0
IC908
MM HT100C08R1.0-2T06
10.00
2
7.00
T06
9.60
12.40
5
1.00
r0.0-r1.0
IC908
MM HT100N06R2.0-2T06
10.00
2
6.00
T06
9.60
12.60
7
2.00
r0.0-r3.0
IC908
MM HT120N06R1.6-2T08
12.00
2
6.30
T08
11.50
11.10
7
1.60
r1.3-r2.7
IC908
IC903
MM HT120N06R2.0-2T08
12.00
2
6.20
T08
11.50
11.10
7
2.00
r1.3-r2.7
IC908
IC903
MM HT120N06R2.5-2T08
12.00
2
6.10
T08
11.50
11.10
7
2.50
r1.3-r4.0
IC908
MM HT120N06R3.0-2T06
12.00
2
5.70
T06
9.10
9.10
7
3.00
r2.7-r4.0
IC908
MM HT120N06R3.0-2T08
12.00
2
6.10
T08
11.50
11.10
7
3.00
r2.7-r4.4
IC908
IC903
MM HT120N06R4.0-2T06
12.00
2
5.40
T06
11.50
9.10
7
4.00
r2.7-r4.0
IC908
MM HT120N06R4.0-2T08
12.00
2
5.90
T08
11.50
11.10
7
4.00
r2.7-r4.4
IC908
IC903
MM HT160N07R2.0-2T10
16.00
2
7.20
T10
15.20
13.10
7
2.00
r1.5r4.0
IC908
MM HT160N07R3.0-2T10
16.00
2
7.20
T10
15.20
13.40
7
3.00
r1.5-r4.0
IC908
MM HT160N07R4.0-2T10
16.00
2
7.20
T10
15.20
13.40
7
4.00
r1.5-r4.0
IC908
MM HT160N08R5.0-2T10
16.00
2
8.00
T10
15.20
20.20
7
5.00
r2.7-4.4
IC908
IC903
MM HT200N11R3.0-2T12
20.00
2
11.10
T12
18.30
17.00
7
3.00
r3.0-r8.0
IC908
MM HT200N11R4.0-2T12
20.00
2
11.50
T12
18.30
17.40
7
4.00
r3.0-r8.0
IC908
MM HT200N11R5.0-2T12
20.00
2
11.50
T12
18.30
17.40
7
5.00
r3.0-r8.0
IC908
MM HT200N11R6.0-2T12
20.00
2
11.40
T12
18.30
17.40
7
6.00
r3.0-r8.0
IC908
MM HT200N11R8.0-2T12
20.00
2
11.30
T12
18.30
17.40
7
8.00
r3.0-r8.0
IC908
