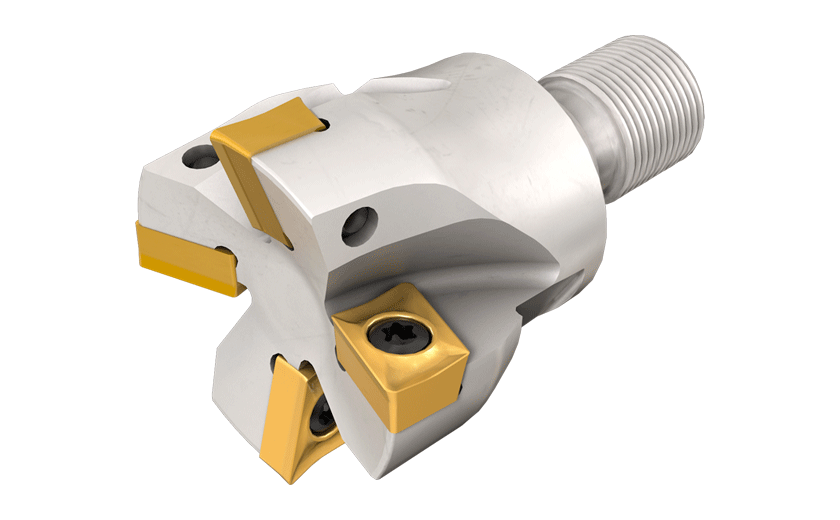

 PLX-M :  Side plunge milling cutters with a FLEXFIT adaptation, used with XCMT 120408TR inserts. Cutting Conditions Machine Power

 For Adaptation Click on Info.

Shouldering   Ramp down   Side plunging

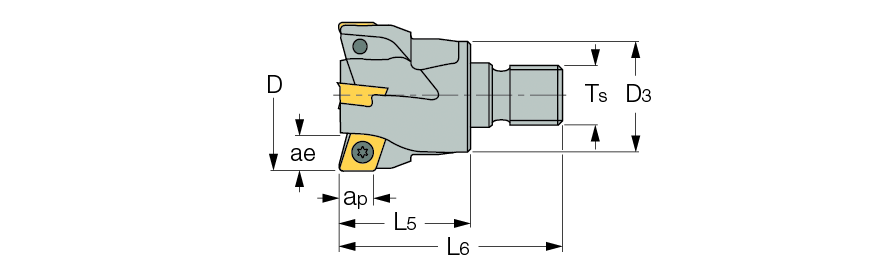

  Designation
D
Z
ae
L5
L6
D3
Ap
Ts
Rd°
Kg
  PLX D32-M16-12  32.00  3  11  35.00  60.00  30.40  9.00  M16  8.60  0.16
  PLX D40-M16-12  40.00  4  11  35.00  60.00  29.00  9.00  M16  6.80  0.19
