 HP E90AT-CF-22 :  HELIPLUS 90° endmills with a CLICKFIT adaptation using HP AD.. 2207.. 22 mm cutting edge inserts. Cutting Conditions Machine Power

 For Adaptation Click on Info.

Shouldering   Slotting   Ramp down   Helical interpolation

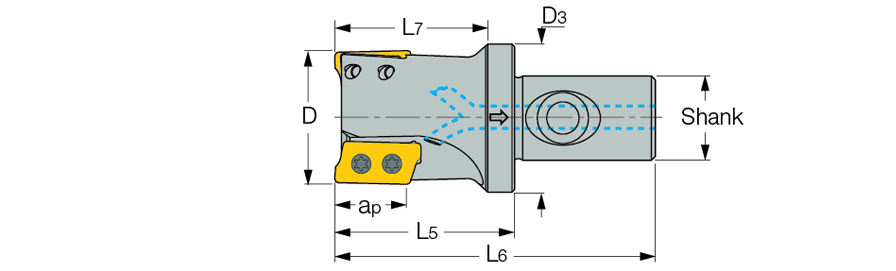

  Designation
D
Z
Ap
L7
L5
L6
Rd°
D3
Shank
Cool
Kg
  HP E90AT-D40-2-CF4-22  40.00  2  22.00  45.00  53.00  95.00  7.00  44.00  CF4  Y  0.49
  HP E90AT-D50-3-CF4-22  50.00  3  22.00  45.00  53.00  95.00  5.00  44.00  CF4  Y  0.85
