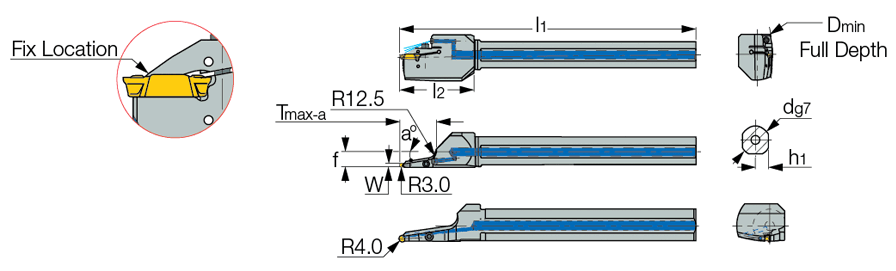

 FGHIFR :  Boring bars with internal coolant holes for facing and internal machining of aluminum wheels using FGPA inserts. Cutting Conditions Machine Power

 Right-hand shown

Int. Machining Aluminum Wheels   Int. Undercut & Turning
  Designation
W
d		 D
min		 D
max
l1
l2
Tmax-a
f
h1
a°
R/L
  FGHIFR 40C-8A-8  8.00  40.00  300.00  360.0  320.00  100.0  70.0  19.5  18.0  8  R
