	SHRINKIN
Sub Application

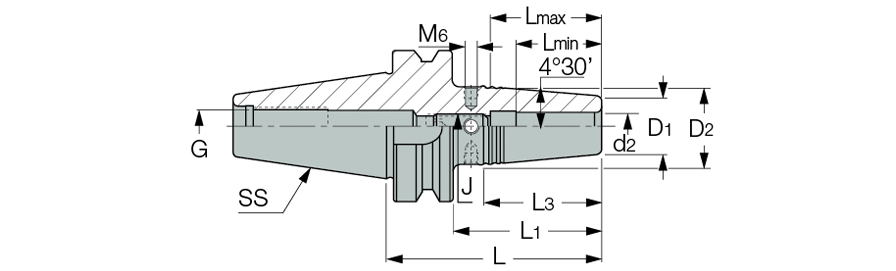

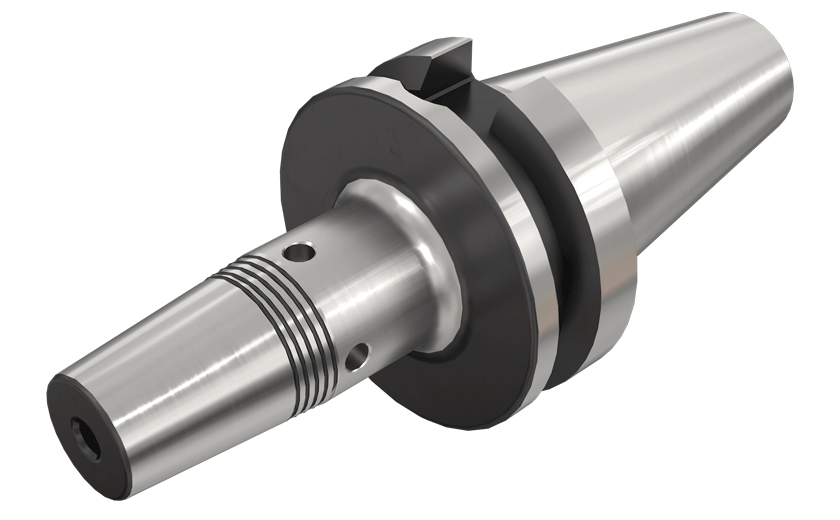

BT-SRKIN : SHRINKIN thermal chucking collet with integral BT MAS 403 form A/B taper shank. Can be used for carbide and HSS tools.

Stopper screw key metric size.

Designation	S.s	d2	D2	D1	L	L1	L3	L min	L max	J	Key	G	Kg
BT40 SRKIN 6X 90	40	6.00	27.00	21.0	90.00	63.0	38.00	25.0	36.0	M5	2.50	M16	1.23
BT50 SRKIN 6X100	50	6.00	26.00	21.0	100.00	62.0	32.00	25.0	36.0	M5	2.50	M24	3.85
BT40 SRKIN 8X 90	40	8.00	27.00	21.0	90.00	63.0	38.00	25.0	36.0	M6	3.00	M16	1.23
BT50 SRKIN 8X100	50	8.00	27.00	21.0	100.00	62.0	38.00	25.0	36.0	M6	3.00	M24	3.84
BT40 SRKIN 10X 90	40	10.00	32.00	24.0	90.00	63.0	51.00	31.0	42.0	M8	4.00	M16	1.29
BT50 SRKIN 10X100	50	10.00	32.00	24.0	100.00	62.0	51.00	31.0	42.0	M8	4.00	M24	3.91
BT40 SRKIN 12X 90	40	12.00	32.00	24.0	90.00	63.0	51.00	36.0	47.0	M10	5.00	M16	1.28
BT50 SRKIN 12X100	50	12.00	32.00	24.0	100.00	62.0	51.00	36.0	47.0	M10	5.00	M24	3.88
BT40 SRKIN 14X 90	40	14.00	34.00	27.0	90.00	63.0	45.00	36.0	47.0	M10	5.00	M16	1.32
BT50 SRKIN 14X100	50	14.00	34.00	27.0	100.00	62.0	45.00	36.0	47.0	M10	5.00	M24	3.94
BT40 SRKIN 16X 90	40	16.00	34.00	27.0	90.00	63.0	45.00	39.0	50.0	M12	6.00	M16	1.30
BT50 SRKIN 16X100	50	16.00	34.00	27.0	100.00	62.0	45.00	39.0	50.0	M12	6.00	M24	3.91
BT40 SRKIN 18X 90	40	18.00	42.00	33.0	90.00	63.0	57.00	39.0	50.0	M12	6.00	M16	1.45
BT50 SRKIN 18X100	50	18.00	42.00	33.0	100.00	62.0	57.00	39.0	50.0	M12	6.00	M24	4.06
BT40 SRKIN 20X 90	40	20.00	42.00	33.0	90.00	63.0	57.00	41.0	52.0	M16	8.00	M16	1.41
BT50 SRKIN 20X100	50	20.00	42.00	33.0	100.00	62.0	57.00	41.0	52.0	M16	8.00	M24	4.00
BT40 SRKIN 25X110	40	25.00	53.00	44.0	100.00	83.0	57.00	47.0	58.0	M20	8.00	M16	2.01
BT50 SRKIN 25X120	50	25.00	53.00	44.0	120.00	82.0	57.00	47.0	58.0	M16	8.00	M24	4.65
BT50 SRKIN 32X120	50	32.00	53.00	44.0	120.00	82.0	57.00	47.0	58.0	M18	8.00	M24	4.47
