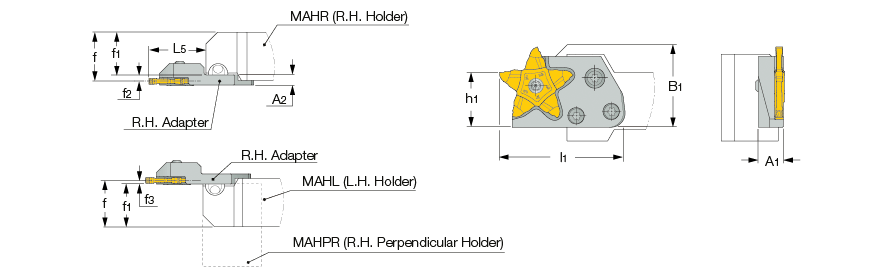

 PCADR/L :  MODULAR GRIP, adapters for PENTACUT groove-turn inserts. Cutting Conditions Machine Power
 F=F1(R.H. Shank)+f2(R.H. Adapter)=F1(L.H. Shank)+f2(L.H. Adapter). F=F1(L.H. Shank)+f3(R.H. Adapter)=F1(R.H. Shank)+f3(L.H. Adapter)


Parting   Ext. Grooving
  Designation W
min		 W
max
l3
l1
f2
f3
A2
h1
B1
R/L
A1
  PCADL 24N  0.50  3.18  17.0  41.50  3.20  2.000  5.2  24.0  30.3  L  9.00
  PCADR 24N  0.50  3.18  17.0  41.50  3.20  2.000  5.2  24.0  30.3  R  9.00
  PCADL 34N  2.00  4.00  29.6  54.30  3.35  1.850  5.2  24.0  31.0  L  11.00
  PCADR 34N  2.00  4.00  29.6  54.30  3.35  1.850  5.2  24.0  31.0  R  11.00
