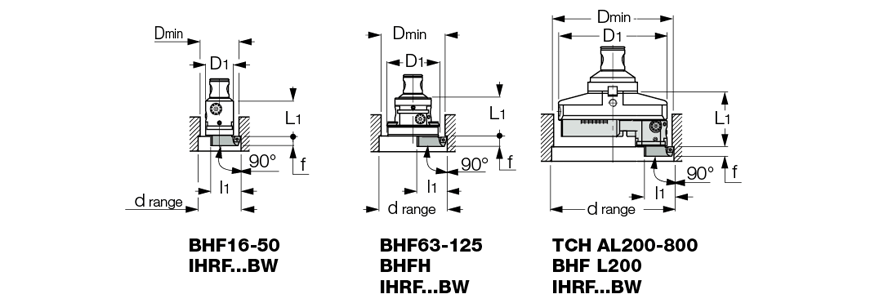

IHRF-BW :


Int., diamante, torneam. rever   ITS-BORE
  Designation d
min		 d
max
D1
L1
f
l1
Insert
  IHRF 20-25BW  20.0  25.0  16.0  27.5  8.0  18.00  CCMT 0602...
  IHRF 24.5-32BW  24.5  32.0  20.0  33.5  8.5  22.50  CCMT 0602...
  IHRF 31.5-41.5BW  31.5  41.5  25.0  41.5  9.5  28.50  CCMT 0602...
  IHRF 38.5-51.5BW  38.5  51.5  32.0  53.0  11.0  35.50  CCMT 0602...
  IHRF 50.5-65BW  50.5  65.0  40.0  68.0  13.5  46.00  CCMT 09T3...
  IHRF 56-802BW  56.0  802.0  50.0  62.0  17.5  53.00  CCMT 09T3...
