HOF :

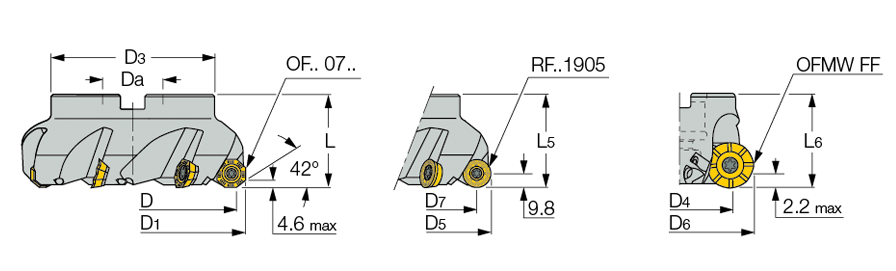

HELIOCTO face mills using octagonal, round and HELIOCTOFEED segmented radii inserts.
Ap changing according to insert
For Adaptation Click on Info.
Designation
D
D1
L
Rd°
D5
L5
Rd°(5)
d
min
D6
L6
Rd°(6)
Z
Da
Arbor
Kg
HOF D050-03-22-R07
50.00
62.5
40.00
6.50
63.30
40.50
9.00
44.8
64.00
40.60
9.00
3
22.00
A
0.31
HOF D063-04-22-R07
63.00
75.5
40.00
5.00
76.30
40.50
6.00
57.8
77.00
40.60
6.00
4
22.00
A
0.40
HOF D080-05-25.40-R07
80.00
92.5
50.00
3.50
93.30
50.50
4.50
74.8
94.00
50.60
4.50
5
25.40
B
1.05
HOF D080-05-27-R07
80.00
92.5
50.00
3.50
93.30
50.50
4.50
92.5
94.00
50.60
4.50
5
27.00
B
1.05
HOF D100-06-31.75-R07
100.00
112.5
50.00
2.50
113.30
50.50
3.00
94.8
114.00
50.60
3.00
6
31.75
C
1.63
HOF D100-06-32-R07
100.00
112.5
50.00
2.50
113.30
50.50
3.00
94.8
114.00
50.60
3.00
6
32.00
B
1.62
HOF D125-08-38.10-R07
125.00
137.5
63.00
2.50
138.30
63.50
2.50
119.8
139.00
63.60
2.50
8
38.10
C
3.07
HOF D125-08-40-R07
125.00
137.5
63.00
2.50
138.30
63.50
2.50
119.8
139.00
63.60
2.50
8
40.00
B
2.60
HOF D160-10-40-R07
160.00
172.5
63.00
1.90
173.30
63.50
1.90
154.8
174.00
63.60
-
10
40.00
C
4.37
HOF D160-10-50.80-R07
160.00
172.5
63.00
1.90
173.30
63.50
1.90
154.8
174.00
63.60
-
10
50.80
B
4.97
HOF D200-12-60-R07
200.00
212.5
63.00
1.50
213.30
63.50
1.50
194.8
214.00
63.60
-
12
60.00
C
1.15
HOF D250-15-60-R07
250.00
262.5
63.00
1.20
263.30
63.50
1.20
244.8
264.00
63.60
-
15
60.00
C
10.90
HOF D315-18-60-R07
315.00
327.5
80.00
0.90
328.30
80.50
0.90
309.8
329.00
80.60
-
18
60.00
C
22.35
