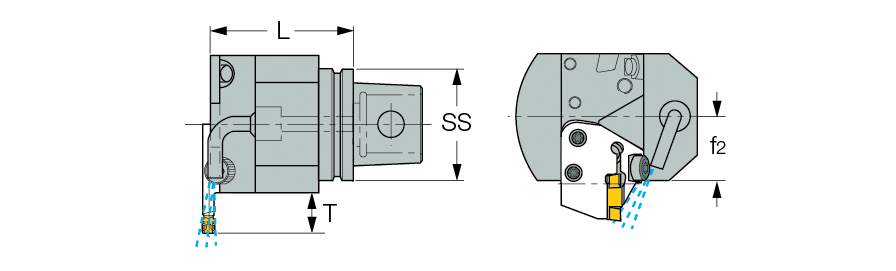

IM-MAHPD :  Perpendicular holders for MODULAR-GRIP parting, grooving, turning and facing adapters with ISO 26622-1(*) tapered shank.
 T= See specific adapter dimensions
Right-hand shown

COOLANT
  Designation
SS
L
f2
  IM40 MAHPD  40  44.00  25.00
  IM50 MAHPD  50  45.00  26.00
  IM63 MAHPD  63  45.00  33.00

(*) Tools with orientation holes in the flange groove can be supplied on request
