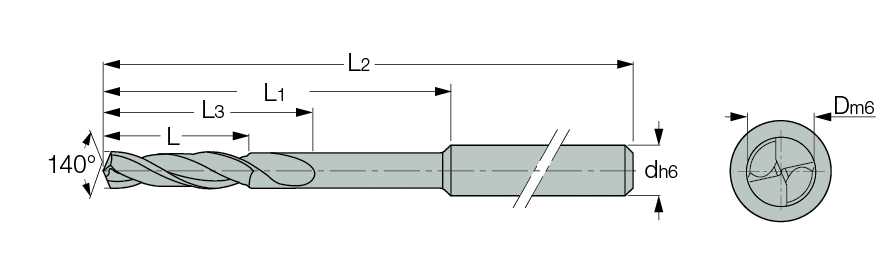

SCD-AP4 (0.8-2.9 mm 4xD) :
Solid carbide drills without coolant holes. Drilling depth 4xD (DIN 6537).
Designation
D
d
L
L3
L1
L2
Th
Grade
SCD 008-003-030 AP4
0.80
3.00
3.2
4.8
8.8
46.0
-
IC908
SCD 009-003-030 AP4
0.90
3.00
3.6
5.4
9.4
46.0
-
IC908
SCD 010-004-030 AP4
1.00
3.00
4.0
6.0
10.0
46.0
-
IC908
SCD 011-004-030 AP4
1.10
3.00
4.4
6.6
10.6
46.0
M1.4
IC908
SCD 012-004-030 AP4
1.20
3.00
4.8
7.2
11.2
46.0
-
IC908
SCD 013-005-030 AP4
1.30
3.00
5.2
7.8
11.8
46.0
-
IC908
SCD 014-005-030 AP4
1.40
3.00
5.6
8.4
12.4
46.0
-
IC908
SCD 015-006-030 AP4
1.50
3.00
6.0
9.0
13.0
46.0
-
IC908
SCD 016-006-030 AP4
1.60
3.00
6.4
9.6
13.6
46.0
M2
IC908
SCD 017-006-030 AP4
1.70
3.00
6.8
10.2
14.2
46.0
-
IC908
SCD 018-007-030 AP4
1.80
3.00
7.2
10.8
14.8
46.0
-
IC908
SCD 019-007-030 AP4
1.90
3.00
7.6
11.4
15.4
46.0
-
IC908
SCD 020-008-030 AP4
2.00
3.00
8.0
12.0
16.0
60.0
-
IC908
SCD 021-008-030 AP4
2.10
3.00
8.4
12.6
16.6
60.0
-
IC908
SCD 022-008-030 AP4
2.20
3.00
8.8
13.2
17.2
60.0
-
IC908
SCD 023-009-030 AP4
2.30
3.00
9.2
13.8
17.8
60.0
-
IC908
SCD 024-009-030 AP4
2.40
3.00
9.6
14.4
18.4
60.0
-
IC908
SCD 025-010-030 AP4
2.50
3.00
10.0
15.0
19.0
60.0
M3
IC908
SCD 026-010-030 AP4
2.60
3.00
10.4
15.6
19.6
60.0
-
IC908
SCD 027-010-030 AP4
2.70
3.00
10.8
16.2
20.2
60.0
-
IC908
SCD 028-011-030 AP4
2.80
3.00
11.2
16.8
20.8
60.0
-
IC908
SCD 029-011-030 AP4
2.90
3.00
11.6
17.4
21.4
60.0
M3.5
IC908
