ISO-Turning
Main Application
Ext. 55° diamond 93° approach
Sub Application
New Search
Related Insert
Related Holder
Machine Power
Search Path

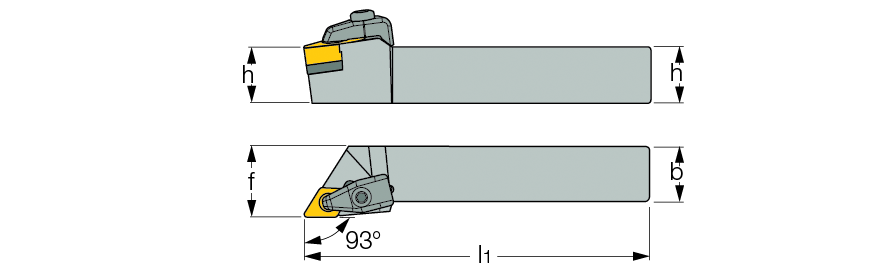

TDJNR/L-CH :
93° lead angle toolholders using 55° rhombic dimpled ceramic inserts.
Right-hand shown
Designation
h
b
l1
f
R/L
TDJNL 2525M-15CH
25.0
25.0
150.00
32.0
L
TDJNR 2525M-15CH
25.0
25.0
150.00
32.0
R
