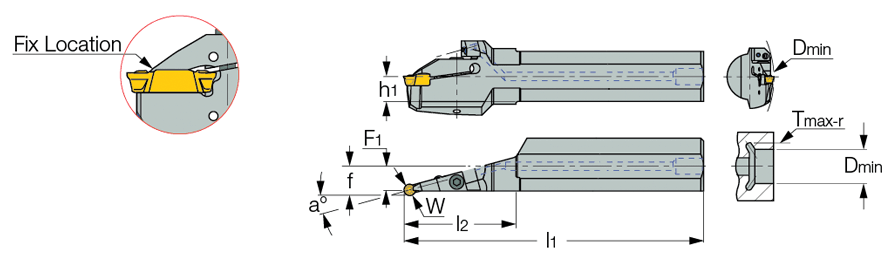

FGHIUR-C-15A-8 :  15° approach angle bars, for interrupted cuts and back turning on aluminum

 Right-hand shown
Int. Machining Aluminum Wheels   COOLANT
  Designation
W
d		 D
min
Tmax-r
l1
l2
f
F1
h1
a°
  FGHIUR 40C-15A-8  8.00  40.00  160.00  0.00  320.00  80.0  21.0  18.0  18.0  15

Upper jaw with hard coating to sustain chip deflection
