ISO-Turning
Main Application
Ext. 100° diamond 75° approach
Sub Application
New Search
Related Insert
Related Holder
Machine Power
Search Path
TCBNR/L-CH :

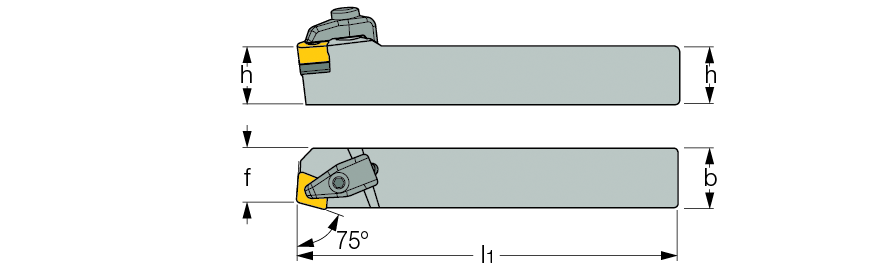

75° lead angle toolholders using the 100° corner of CNGX 80° negative rhombic ceramic dimpled inserts.
Right-hand shown
Left-hand shown
Designation
h
b
l1
f
R/L
TCBNL 2525M-12CH
25.0
25.0
150.00
22.0
L
TCBNR 2525M-12CH
25.0
25.0
150.00
22.0
R
