TCKNR/L-CH :  75° lead angle toolholders using the 100° corner of CNGX negative 80° rhombic ceramic dimpled inserts for face turning.

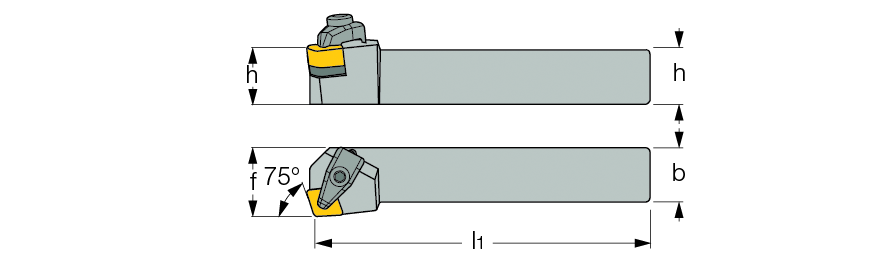

 Right-hand shown

Ext. 100° diamond, face 75°app   Radial Turning
  Designation
h
b
l1
f
R/L
  TCKNL 2525M-12CH  25.0  25.0  150.00  32.0  L
  TCKNR 2525M-12CH  25.0  25.0  150.00  32.0  R
