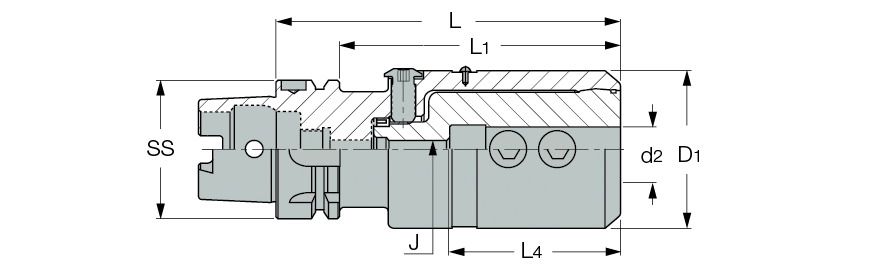

FITBORE HSK A-EM :
FITBORE, Adjustable drilling diameter holders (by center offsetting) with HSK DIN69893/A tapered shanks.
.
Designation
SS
d2
D1
L
L1
L4
J
Kg
FITBORE HSK A 63 EM25
63
25.00
72.0
142.00
116.0
71.0
M10
3.68
FITBORE HSK A 63 EM32
63
32.00
72.0
142.00
116.0
71.0
M10
3.87
FITBORE HSK A 63 EM40
63
40.00
72.0
142.00
116.0
71.0
M10
2.50
A cooling tube must be used with all coolant through HSK spindles (should be ordered separately).
For shank dimensions, Click on "More Info".
