ADJ ST-ER :

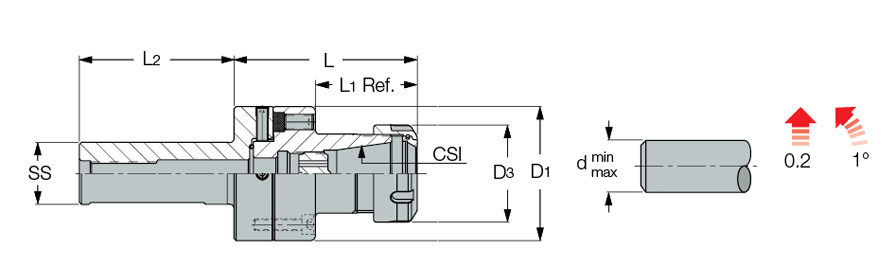

DIN 6499 ER collet chucks with center alignment and cylindrical shanks.
Designation
SS
CSI
d
min
d
max
L3
L1
L2
D3
D1
Kg
ADJ ST25 D70 ER32
25
ER32
2.0
20.0
94.50
52.5
80.00
50.00
70.0
1.74
ADJ ST32 D70 ER32
32
ER32
2.0
20.0
94.50
52.5
80.00
50.00
70.0
1.91
Radial adjustment 0.1 mm. Angular adjustment 1°.
