GM-DG :  Slitting cutters carrying self-clamped inserts. When used with GIM or GIMY single ended inserts, cutting depth is not limited. GIP and GIF double-ended inserts can be used for DOC less than 12mm, GIPA inserts for aluminum.

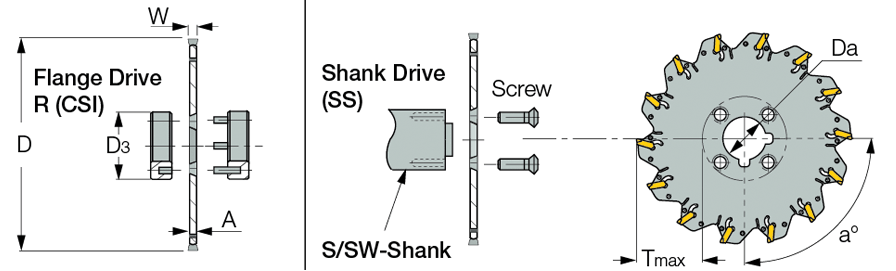

Side slotting   Slitting
  Designation W
min		 W
max
D
Z
Da
A
Tmax		 RPM
max
a°
SS
CSI
  GM D100-3DG-22K  2.70  3.35  100.00  6  22.00  2.40  29.00  800  90  SW 32-40  R 22-46
  GM D125-3DG-32K  2.70  3.35  125.00  8  32.00  2.40  34.00  640 -  S 32-55  R 32-55
  GM D160-3DG-32K  2.70  3.35  160.00  10  32.00  2.40  39.00  500  90  S 32-55  R 32-55
  GM D200-3DG-40K  2.70  3.35  200.00  14  40.00  2.40  59.00  400  90  S 40-80  R 40-80
  GM D100-4DG-22K  3.36  4.35  100.00  6  22.00  3.20  29.00  800  90  SW 32-40  R 22-46
  GM D125-4DG-32K  3.36  4.35  125.00  8  32.00  3.20  34.00  640 -  S 32-55  R 32-55
  GM D160-4DG-40K  3.36  4.35  160.00  10  40.00  3.20  39.00  500  90  S 40-80  R 40-80
  GM D200-4DG-40K  3.36  4.35  200.00  14  40.00  3.20  59.00  400  90  S 40-80  R 40-80

D3 Refer to SW/S drive shanks and R drive flange set.
Maximum RPM may not be exceeded.
